2-Port DVI-I Secure EAL4+ KVM Switch with CAC & Audio



Replaced by: SmartAVI SDVN-2S-P
Alternative options: Contact Us


  • Validated to EAL 4+ security standards
  • Complies with Common Criteria Protection Profile 2.1
  • Manage two connected computers in isolation
  • Advanced scaling enables no quality loss
  • Unidirectional data paths
  • Dedicated processors for emulation
  • USB port protection

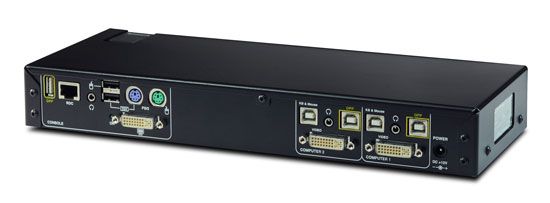

SmartAVI K202E-SH Rear
SmartAVI K202E-SH Unit Rear

The K202E secure KVM switch features the most protections and separations between connected computers available on the market. This KVM switch eliminates points of vulnerability that have plagued other KVM units.

With two connected computers, the K202E offers impressive levels of communications, even when connecting computers that are on different levels of security clearance and Internet access. K202E utilizes unidirectional optical data-diodes which insulates all connections from any possible points of data leakage among peripherals. Every K202E secure KVM switch is rigorously and extensively tested to ensure it will remain stalwart against any known form of KVM security attacks. The unit has been certified to meet EAL 4+ standards to assure it provides the highest level of security possible. The K202E also features a special secured port for a Common Access Card (CAC) reader to support user authentication across multiple isolated networks.

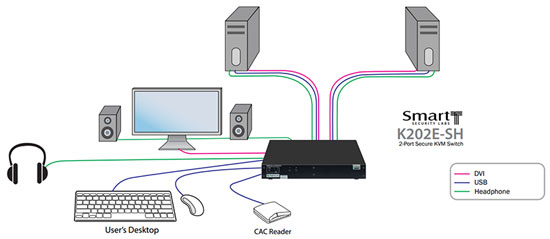

SmartAVI K202E-SH Application Diagram

Host Computer Input Ports2 x isolated USB Type B and Audio input ports to connect computers
2 x isolated keyboard and mouse device emulators
2 DVI-I female connectors
2 USB Type B connectors for user authentication device
Console PortsUSB Type-A jacks for keyboard and mouse
RDC Port to connect HSL Remote Desktop Controller (RJ-45 jack)
Channels isolation with optical data-diode and two separate host emulators
1 DVI-I female connectors for user displays
2 PS/2 legacy keyboard and mouse connectors
User ControlManual channel selection via Hotkeys
Status LED's in front panel to indicate current selected channel
PowerDC input 12V/1A maximum
Wall mounted power supply included
Power input 90-240V AC
Security FunctionsUSB ports supporting only keyboard and mouse through host emulation and strong filtering
Optical Data Diode assures unidirectional flow from devices to computers
Changing Firmware (on ROM) cannot cause leakage between channels or data export
Isolated power supplies for each device emulator
Battery powered anti-tampering system to disable product in case of mechanical intrusion
Special holographic Temper Evident Labels
Peripheral securityUSB ports supporting only keyboard and mouse through host emulation
Data-diode assures USB unidirectional flow from devices to host
Firmware change can not cause leakage between channels or data export
EnvironmentalTemperature range: Operating - 0°C to 40°C (32°F to 104°F); Storage - -20°C to 60°C (-4°F to 140°F)
Humidity: Operating - 20 to 80% non condensing; Storage - 10 to 90% non condensing
Altitude: 0 to 10,000 ft
Regulatory ComplianceSafety: UL/cUL60950,EN60 950
EMI/EMC: FCC Class B, CE Mark, EN55022B, VCCI
Security AccreditationsCommon Criteria EAL 4+ certified
Complies with latest NIAP Peripheral Sharing Switch (PSS) For Human Interface Devices Ver 2.1
Physical CharacteristicsDimensions: 135(D) x 320 (W) x 50 (H) mm / 5.3 (D) x 12.6 (W) x 2.0 (H) inch
Device weight: 1.5 Kg. (3.3 lbs.)
Shipping Weight: 1.8 Kg (4.0 lbs) without cables
