4-Port DisplayPort 1.2 Secure EAL4+ KVM Switch with CAC, RDC & Audio



Replaced by: SmartAVI SDPN-4S-P
Alternative options: Contact Us


  • Validated to EAL 4+ security standards
  • Complies with Common Criteria Protection Profile 2.1
  • Manage four connected computers in isolation
  • Advanced scaling enables no quality loss
  • Unidirectional data paths
  • Dedicated processors for emulation
  • Includes DisplayPort security protocols
  • USB port protection
  • Remote Desktop Controller
  • CAC Port

SmartAVI K504E-SH Rear

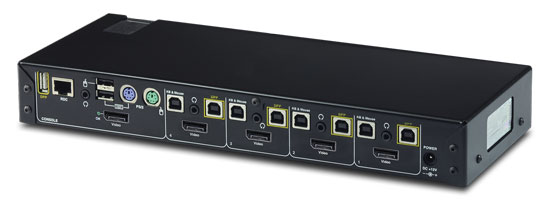

SmartAVI K504E-SH Unit Rear

With four connected computers, the K504E offers impressive levels of seamless communications even when connecting computers that are on different levels of security clearance and Internet access. The K504E utilizes unidirectional optical datadiodes which insulates all connections from any possible points of data leakage among peripherals. Also included is an auxiliary channel firewall, providing further protection from internal security weaknesses. Every K504E secure KVM switch is rigorously and extensively tested to ensure it will remain stalwart against any known form of KVM security attacks. The unit has been certified to meet EAL 4+ standards to assure it provides the highest level of security possible.

The K504E is an essential tool for users challenged by frequent switching between isolated networks. This product resolves challenges of virtualization while adding additional security protections. The RDC (Remote Desktop Controller) port enables simple interface with the RDC controller. Using the K504E with RDC, users can control and monitor KVM functions remotely and securely. The K504E also features patented auxiliary channel firewall that designed to protect from DisplayPort internal security vulnerabilities.

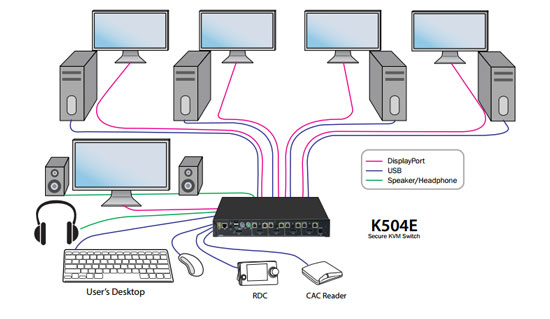

SmartAVI K504E-SH Application Diagram

Host Computer Input Ports4 input ports, each including 1 DisplayPort Female connectors for video input, 1 USB Type-B connector for key board and mouse, 1 USB Type-B connector for user authentication device, 1 Audio input 3.5 mm stereo jack
Console Ports1 DisplayPort Female Connector, 2 USB Type-A jacks for keyboard and mouse, 1 USB Type-A jack for user authentication device, 1 RS-45 jack for remote desktop controller and 1 Audio output 3.5 mm stereo jack
ManagementChannel select/status LEDs, channel select push-buttons, keyboard hotkeys (optional - can be disabled)
Video Modes SupportedAll DisplayPort 1.2 resolutions up to 3840x2160 x30 bpp @60 Hz
Supports 17.28 Gbits @ a 4-lane link
Security FunctionsUSB ports supporting only keyboard and mouse through host emulation and strong filtering
Patented AUX channel firewall
Optical Data Diode assures unidirectional flow from devices to computers
Changing Firmware (on ROM) cannot cause leakage between channels or data export
Isolated power supplies for each device emulator
Battery powered anti-tampering system to disable product in case of mechanical intrusion
Special holographic Temper Evident Labels
PowerDC input 12V/1A maximum
Wall-mounted power supply included. Power input 90-240V AC
Peripheral SecurityUSB ports supporting only keyboard and mouse through host emulation
Data-diode assures USB unidirectional flow from devices to host
Firmware change can not cause leakage between channels or data export
EnvironmentalTemperature range: Operating - 0°C to 40°C (32°F to 104°F); Storage - -20°C to 60°C (-4°F to 140°F)
Humidity: Operating - 20 to 80% non condensing; Storage - 10 to 90% non condensing
Altitude: 0 to 10,000 ft
Regulatory ComplianceSafety: UL/cUL60950,EN60 950
EMI/EMC: FCC Class B, CE Mark, EN55022B, VCCI
Security AccreditationsCommon Criteria EAL 4+ certified ALC_FLR.3 certified
Designed for Common Criteria EAL-5
Complies with latest NIAP Peripheral Sharing Switch (PSS) For Human Interface Devices Ver 2.1
Physical CharacteristicsDimensions: 32(D) x 135 (W) x 33 (H) mm / 12.6 (D) x 5.3 (W) x 2.0 (H) in
Device weight: 1.5 Kg (3.3 lbs)
Shipping Weight: 1.8 Kg (4 lbs) without cables
