4-Port Dual-Head DisplayPort 1.2 Secure EAL4+ KVM Switch with CAC & Audio - 4Kx2K



Replaced by: SmartAVI SDPN-4D-P
Alternative options: Contact Us


  • Validated to EAL 4+ security standards
  • Complies with Common Criteria Protection Profile 2.1
  • Manage four connected dual-head computers in isolation with DisplayPort 1.2
  • Advanced scaling enables no quality loss
  • High quality video up to 4Kx2K (3840_2160 by 30 bpp @ 60Hz) resolution
  • Unidirectional data paths
  • Dedicated processors for emulation
  • USB port protection
  • Supports CAC Render

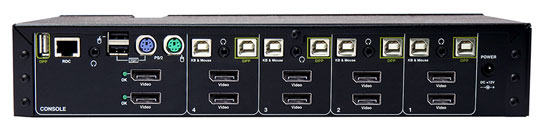

SmartAVI K524E-SH Rear
SmartAVI K524E-SH Unit Rear

The K524E secure KVM switch features the most protections and separations between connected computers available on the market. This KVM switch eliminates points of vulnerability that have plagued other KVM units.

With four connected dual-head computers, the K524E offers impressive levels of seamless communications even when connecting computers that are on different levels of security clearance and Internet access. Users can set up two displays to get the most out of dual-head computers. The K524E utilizes unidirectional optical data-diodes which insulates all connections from any possible points of data leakage among peripherals. Every K524E secure KVM switch is rigorously and extensively tested to ensure it will remain stalwart against any known form of KVM security attacks. The unit has been certified to meet EAL 4+ standards to assure it provides the highest level of security possible.

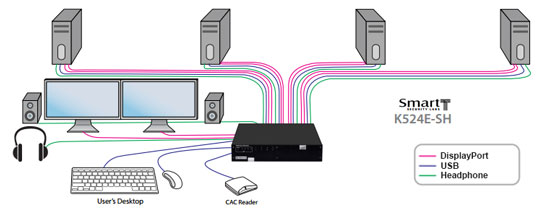

SmartAVI K524E-SH Application Diagram

Host Computer Input Ports4 x isolated USB Type B and Audio input ports to connect computers
4 x isolated keyboard and mouse device emulators
4 dual-head DisplayPort 1.2 female connectors
Console PortsUSB Type-A jacks for keyboard and mouse
RDC Port to connect HSL Remote Desktop Controller (RJ-45 jack)
Channels isolation with optical data-diode and two separate host emulators
2 DisplayPort female connectors for user displays
User ControlChannel switching via Virtual Desktop Technology (VDT) - KM operation will switch to current cursor location
Manual channel selection via Hotkeys
Status LED's in front panel to indicate current selected channel
User may set mouse speed, acceleration other cursor behaviors
PowerAC input cable IEC-3 jack
Internal power supply.
Power input 90-240V AC, 0.2A maximum at 110VAC
Security FunctionsUSB ports supporting only keyboard and mouse through host emulation and strong filtering
Optical Data Diode assures unidirectional flow from devices to computers
Changing Firmware (on ROM) cannot cause leakage between channels or data export
Isolated power supplies for each device emulator
Battery powered anti-tampering system to disable product in case of mechanical intrusion
Special holographic Temper Evident Labels
Peripheral securityUSB ports supporting only keyboard and mouse through host emulation
Data-diode assures USB unidirectional flow from devices to host
Firmware change can not cause leakage between channels or data export
EnvironmentalTemperature range: Operating - 0°C to 40°C (32°F to 104°F); Storage - -20°C to 60°C (-4°F to 140°F)
Humidity: Operating - 20 to 80% non condensing; Storage - 10 to 90% non condensing
Altitude: 0 to 10,000 ft
Regulatory ComplianceSafety: UL/cUL60950,EN60 950
EMI/EMC: FCC Class B, CE Mark, EN55022B, VCCI
Security AccreditationsCommon Criteria EAL 4+ certified
Complies with latest NIAP Peripheral Sharing Switch (PSS) For Human Interface Devices Ver 2.1
