Aten PS/2 KVM Adapter Cable (CPU Module)


Save $10.16
FREE Shipping on orders over $100

The KA7520 PS/2 KVM Adapter Cable connects the KVM switch to the video, PS/2 mouse and PS/2 keyboard ports of the target computer. With its small form factor and light weight design, it fits perfectly into most of the rack-mount or desktop servers.

This cable is compatible with the following ATEN/ALTUSEN units: KH1508A, KH1516A, KH1508Ai, KH1516Ai, KH2508A, KH2516A, KL1508A, KL1516A, KL1508Ai, KL1516Ai.

KA7520 Features:

  • Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 40m
  • Hot pluggable - add or remove computers without having to power down the switch.
  • Compact size

*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables

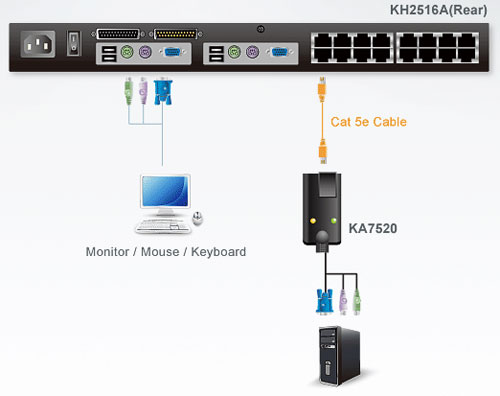

KA7520  ATEN PS/2 KVM dongle application diagram

KA7570 Specifications:

Width 1.8 in. (4.6 cm)
Height 0.8 in. (2.0 cm)
Length 3.5 in. (9 cm)
Link Green
Power OnOrange
Console Connectors
Keyboard, Mouse, and Monitor RJ-45
CPU Connectors
Mouse & Keyboard1 x PS/2 (Mouse),
1 x PS/2(Keyboard)
Monitor 1x DB-15 (VGA)
UPC / EAN Barcode icon
UPC 672792400414
EAN 0672792400414
Question: 1. Do you ship to Malaysia
Answer: Thank you for your inquiry,

Unfortunately we are unable to ship products to Malaysia at this time.
