PS/2 KVM Adapter Cable (CPU Module) w/ 4.5m CAT5 Cable


FREE Shipping on orders over $100

The KA7920 PS/2 KVM Adapter Cable connects the KVM switch to the video, PS/2 mouse and PS/2 keyboard ports of the target computer. With its small form factor and light weight design, it fits perfectly into most of the rack-mount or desktop servers.

This cable is compatible with the following ATEN/ALTUSEN units: KH1508A, KH1516A, KH1508Ai, KH1516Ai, KH2508A, KH2516A, KL1508A, KL1516A, KL1508Ai, KL1516Ai.

KA7920 Features:

  • Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
  • Lifetime firmware upgrades
  • Built in 4.5m (14.7ft) Cat 5 cable
  • Superior video quality - supports resolution of up to 1600 x 1200 within the attached CAT5 cable distance of up to 4.5m
  • Hot pluggable - add or remove computers without having to power down the switch.
  • Compact size

*1680 x 1050 (Reduced blanking) and 1920 x 1200 (Reduced blanking) not supported by KA7xxxx KVM Adapter Cables

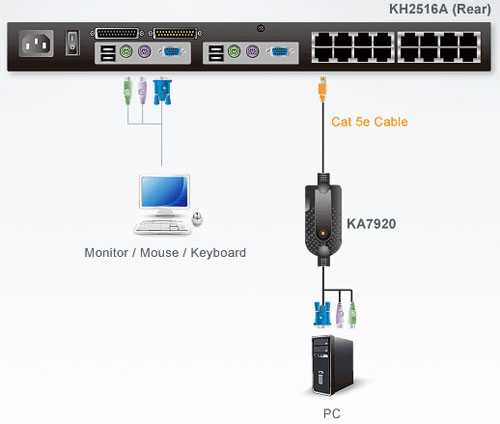

KA7920  ATEN PS/2 KVM dongle application diagram

KA7920 Specifications:

Width 1.5 in. (3.8 cm)
Height 0.6 in. (1.5 cm)
Length 3.1 in. (7.9 cm)
Link Orange
Console Connectors
Keyboard, Mouse, and Monitor 1 x RJ-45 Female
w/ 14.5ft Cat 5 cable
CPU Connectors
Mouse & Keyboard1 x PS/2 (Mouse),
1 x PS/2(Keyboard)
Monitor 1x HDB-15 (VGA)
UPC / EAN Barcode icon
UPC 672792400520
EAN 0672792400520
