Sun Legacy KVM Adapter Cable (CPU Module)

KA9130

$114.95
FREE Shipping on orders over $100

 The Altusen SUN CPU adapters connect KVM cables to the console ports of the SUN servers. Those adapters are light and in small form factor, fit perfectly into most of the rack-mount or desktop servers.

Features:

  • Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
  • Hot pluggable - add or remove computers without having to power down the switch.
  • Lifetime firmware upgrades
  • Built in ASIC for greater reliability and compatibility
  • CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
  • Compact size
  • Superior video quality - supports resolution of up to 1600 x 1200 within the distance of up to 165 feet (50m)

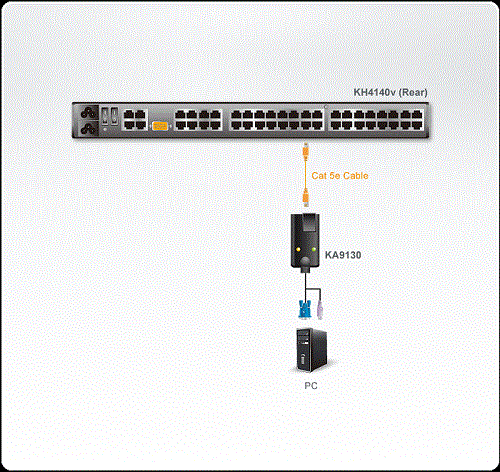

Diagram

diagram



Specifications:

Connectors
Link  1 x RJ-45 Female
Keyboard/mouse  1 x Min Din 6 Male
VGA to Computer   1 x 13W3 Male
LED's
Online 1 (green)
Power 1 (orange)
Physical Properties
housing Plastric
Weight 0.3 lbs
Dimensions 3.5 x 1.7 x 0.9 lb.
(9 x 4.3 x 2.3 cm)
