SmartAVI DVI/Audio/PS2 Point to Point CAT5 Extender System



For upgrade or replacement options: Contact Us

The SmartAVI KDX200 extends any DVI-D signal, keyboard, mouse and sound up to 250ft with CAT5 cable.

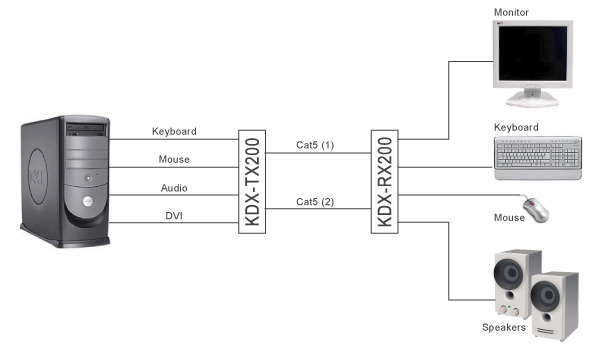

SmartAVI Cat5 Extender Diagram
SmartAVI Cat5 Extender Diagram

SmartAVI KDX200 Features:

  • Top Image Quality at all Resolutions.
  • Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) on all distances up to the maximum distance.
  • User selectable: DCC-Information used from the remotely located monitor, from the locally located monitor or from an internal DDC table.
  • Basic device to remotely locate monitor, keyboard/mouse and sound.
  • Supports PS2-keyboard/mouse.
  • Maximum screen resolution on all distances: 250 ft w/ STP CAT5e.
  • Compatible with all operating systems.
  • Compatible with all major KVM switches.
  • Supports stereo sound.

SmartAVI KDX200 Package Includes:

  • KDXTX200 Transmitter
  • KDXRX200 Receiver
  • KVM cable (CCKVMMM06)
  • 5VDC power supply (PS5VD1AU) 2units

SmartAVI KDX200 Specifications:

Height 0.825 in. (2.10 cm.)
Width 6.25 in. (15.88 cm.)
Depth 6.125 in. (15.56 cm.)
Weight 0.4 lb. (0.2 kg.)
Power Supply 5VDC
Systems Windows 2000, XP and 2003 and Linux
Video Interface DVI-D
Resolution 1920 x 1200 @ 60 Hz
Keyboard Minidin color coded, supports PS2 compatible.
Mouse Minidin color coded, PS/2, wheelmouse, 5-button mouse
Signal Type Stereo Audio
Bandwidth 15MHz, 0dB
Impedance 100 Ohm
Connector 3.5mm mini jack, Female
UPC / EAN Barcode icon
UPC 813280022095
EAN 0813280022095
Question: If installation, we need your software?
Answer: Thank you for your inquiry,

The SmartAVI KDX200 is a fully driver-free point-to-point extension system. For set-up, simply plug-in the cables (power, video, keyboard, mouse, audio) and you are good to go!

Please let us know if there is anything else we can ever help you with!
