Chainable DVI/VGA KVM Extender via LAN


Save $101.34
FREE Shipping on orders over $100

To extend KVM (Keyboard, Video and Mouse) operation of DVI and VGA connections, the KLX-500-V2-S (formerly the KLX-500S, and KLX-500-S) Extender provides 500 feet of connectivity using the Cat5e/6 cables used in LAN infrastructure. Users can add additional extenders to break the distance barriers for KVM extension over DVI and VGA. In addition to KVM operation, this compact unit also transmits audio.

The KLX-500-V2 is ideal in pre-configured work environments, because it allows users to employ the preexisting LAN infrastructure commonly available in office environments. Users can also choose to set up their own cabling, if they so choose.

The KLX-500-V2 supports full USB emulation and 1080p HD video up to 1920x1080 resolution at 60Hz. With plug-and-play functionality, there are no drivers or software installations required. With stable connections, there's no easier way to implement increased distance in KVM management.

The KLX-500-V2 compresses data to utilize Cat5e/6 cables, but users will see no degradation of signal when using one gigabit Internet connections and up. For users utilizing preexisting LAN connections, implementing a one gigabit switch allows for signal extension with full resolution. Users with smaller bandwidth will experience compressed signal if they decide to forgo the additional switch.

SmartAVI KLX-500-V2 Features:

  • Extends KVM operation by 500 feet via LAN (Cat5e/6 cables)
  • Supports DVI and VGA monitors
  • Supports full USB emulation
  • Audio input and output
  • Dual control operation, both local and remote use of KVM
  • Supports 1080p up to 1920x1080 resolution at 60Hz
  • IR (Infrared) remote enabled
  • Plug-and-Play ready
  • No software or driver required

SmartAVI RKT8-HDX100

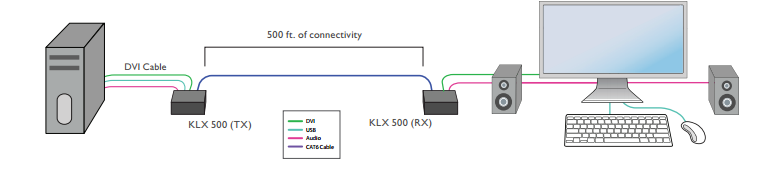

SmartAVI KLX-500 Diagram

SmartAVI KLX-500-V2 Specifications:

Format DVI-D
HDTV Resolutions 480p, 720p, 1080i, 1080p/60Hz/48bit
TV Resolution 480i
Input Interface (TX) DVI-I, 2 USB Type A Female & 1 USB Type B
Output Interface (RX) DVI-I, 2 USB Type A Female
Power External 100-240 VAC/5VDC2A @10W
Dimensions 8.75"W x 1.5"H x 3.5"D
Weight 1.1 lb
Operating Temp. 41-122°F (5-50 °C)
Storage Temp. 32-149 °F (0-65 °C)
Humidity Up to 85%

The KLX-500-V2-S is the full DVI KVM Extender system including the KLX-500-V2-TX Transmitter (formerly the KLX-500-TX) , KLX-500-V2-RX Receiver (formerly the KLX-500-RX), and two PS5VD2A-WallMount Power supplies. The KLX-500-V2 is the updated KLX-500 (KLX-500S or KLX-500-S)

UPC / EAN Barcode icon
UPC 813280018388
EAN 0813280018388
