Aten 8 Console, 32 Port Matrix KVM Switch

KM0832

$5,999.95

Discontinued
Recommended replacement: Raritan DKX3-832
Alternative options: Contact Us

The Aten KM0832 Matrix KVM Switch gives IT administrators in large corporations advanced control of multiple servers. Operators working at up to eight keyboard, mouse, and monitor consoles can simultaneously and independently take direct control of up to 32 computers. With a combination of daisy chaining and cascading, up to 8 consoles the KM0832 can access and control more than 8,000 computers.

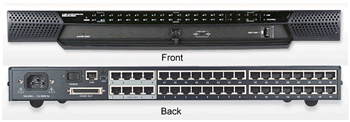

Aten KM0832 Front & Backside

Aten KM0832 Front & Backside

Aten KM0832 Features:

  • Eight consoles independently and simultaneously control up to 32 directly connected computers
  • Saves valuable time: backup and restore settings when changing root stations* (Backup user and group accounts, station names, port access rights, and user profile settings.)
  • Supports up to 1024 user accounts
  • Supports up to 256 group accounts
  • Three-level password security: Super Administrator, Administrator, and User
  • Cascades three levels to support more than 8000 computers
  • Multiplatform support: PC, Mac, Sun, and serial
  • Detachable front panel for easy access to front and rear of unit
  • Console conversion: any type of console can control any type of computer; mixed combinations (PS/2 & USB) supported on both the console and computer sides
  • Additional User Port on front panel for easy system maintenance** (Shares the same bus with User Port 1 on the rear panel.)
  • Convenient computer selection via intuitive hotkey combinations or On Screen Display (OSD)
    menus
  • Daisy chain up to 7 additional KM0432 stations*** (If this feature is not operative on your unit, you will need a newer version of the firmware. Contact your dealer for details.)
  • OSD port list automatically expands when stations are added - port names are automatically reconfigured when the station sequence is changed
  • OSD screen automatically adjusts to resolution changes
  • Auto Scan feature for monitoring user-selected computers
  • Superior video quality: 1024 x 768 @ 60Hz for up to 300m; 1920 x 1440 @ 60Hz (distance depends on installation environment)
  • Auto Signal Compensation (ASC) assures optimum video resolution for distances up to 300m
    between computers and consoles - no DIP switch setting required
  • Compact design - rack mounts in only 1U of rack space

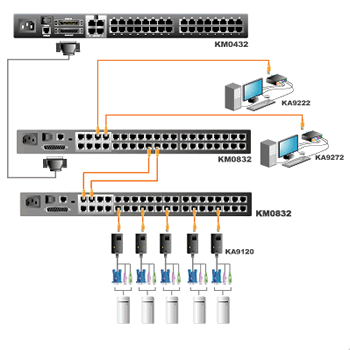

Aten KM0832 Diagram

Aten KM0832 Diagram

Aten KM0832 Package Includes:

  • 1x KM0832 Matrix KVM Switch
  • 1x Power Cord
  • 1x Rack Mount Kit (brackets and Phillips hex head screws M3 x 8)
  • 1x Foot Pads (4 pcs.)
  • 1x User Manual
  • 1x Quick Start Guide
  • 1x Registration Card

Atem KM0832 Specifications:

Mechanical
Height 1.73 in. (4.4 cm.)
Width 14.96 in. (38 cm.)
Depth 17.24 in. (43.8 cm.)
Weight 10.8 lbs. (4.9 kg.)
Housing Metal
Environmental
Operating Temperature 0˚C to 50˚C
Storage Temperature -20˚C to 60˚C
Humidity 0 to 80% RH, NC
Power
Consumption 120V,19W / 230V,20W
Computer Connections
Direct 32
Maximum 8000 (via Daisy Chain + Cascade)
Console Connections 8
Computer Port Selection OSD (On Screen Display), Hotkeys
Connectors
Console port 8 x RJ-45 Female
KVM Port 32 x RJ-45 Female
Daisy Chain 1 x HPDB-50 Female
Configuration 1 x RJ-45 Female
Maintenance 1 x RJ-45 female
Power 1 x 3 Prong AC Socket
Switches
Reset 1 x pushbutton (semi-recessed)
Power 1 x Rocker
Fi/W Upgrade Recovery 1 x Slide
User Port 1 1 x slide switch
LED's
KVM Port (On Line) 8 (green)
CPU Port (On Line/Selected) 32 dual-colored (green/red)
Power 1 (Blue)
I/P Rating 100 to 240 VAC; 50/60Hz; 1A
Emulation
Keyboard / Mouse PS/2; Sun; USB
(PC, Sun, Mac); serial
Scan Interval 1 to 240 seconds
Video 1024x768@60Hz
(300m max); DDC2B
Question: Is this KVM new or refurbished? Also, does it include any warranty?
Answer: Thank you for your inquiry. This would be a new product with a 1 year limited warranty
