ATEN 16-port KVM On the Net



Recommended replacement: Raritan DLX-216
Alternative options: Contact Us

The ATEN KN9116 is a 2 user, 16-port KVM On the Net KVM Switch.  The KN9116 controls up to 16 computers directly and 128 computers by cascading.  In addition to its console ports for local management, this KVM switch's built-in LAN port provides network administrators the ability to access computers from any station connected to the network, whether from the LAN, WAN, or the Internet. Network administrators can enjoy freedom from being bound to the server room; work from anywhere in the office, remote locations, or even from home! There is no need to pre-install any software; simply load your browser and launch the Windows/Java Client from within the browser to access your KN9108.

The KN9116 offers many advanced features such as an intuitive OSD (On Screen Display), Hot Keys, Radius server support, excellent video resolutions, Multi-Session visual capability, flash ROM for firmware upgrades, remote console access, message board, and radius server support. 2-level password security for administration of user rights, 128-bit SSL encryption, IP and MAC Filters, and Automatic Logout for protection during idle sessions.

ATEN KN9116 Features:

  • Support 2 bus sessions(1 local; 1 Remote) - 2 different users can access 2 different ports at the same time.
  • Up to 32 users can log in at the same time for concurrent access to a server
  • Message board feature allows logged in users to communicate with other users
  • Ports can be set to Exclusive, Occupy and Share
  • Radius server support
  • Monitor and control up to 16 computers from a single KVM console and up to 128 computers via cascading
  • Remotely access computers via LAN, WAN, or the Internet; Supports 10Base-T, 100Base-T, TCP/IP, HTTP
  • Dual Bus-Concurrent log in for local and remote administrators
  • Front panel can separate from main chassis for convenient rack mounting

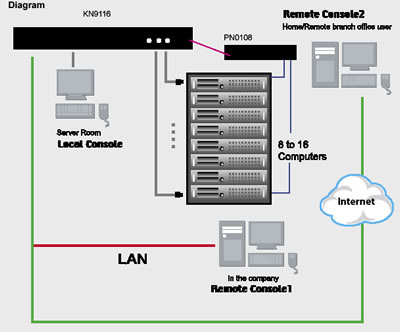

Aten KN9116 On the NET KVM Switch Diagram
Aten KN9116 On the NET KVM Switch Diagram

ATEN KN9116 Requirements:

  • For Remote Computers:
    • For best results, computers that remotely access the KN9116 should have at least PIII GHz processor, with screen resolution set to 1024x748
    • For the Windows Client, you must have DirectX 7.0 or higher installed
    • For Java Client, you must have Sun's Java 2 (1.4 or higher) runtime environments installed
    • Browsers must be 128-bit encryption enabled
  • Computer Requirements: The following equipment must be installed on the computers that connect to the KN9116's CPU ports
    • A VGA, SVGA or Multi-sync port
    • A 6-pin mini-DIN (PS/2) keyboard port
    • A 6-pin mini-DIN (PS/2) mouse port Cables: 2L5202P, additional sizes also available

ATEN KN9116 Package Includes:

  • 1 x KN9116 KVM Over the Net, KVM Switch
  • 2 x 6 ft. PS2 KVM Cable
  • 1 x Power Cord
  • 1 x User Manual
  • 1 x Quick Start Guide
  • 1 x Registration Card

ATEN KN9116 Specifications:

Height 1.8 in. (4.4 cm.)
Width 10.4 in. (26.0 cm.)
Depth 17.0 in. (43.7 cm.)
Weight 9.3 lbs. (4.2 kg.)
Operating Temperature 32F~104F (0C~40C)
Storage Temperature -4F~140F (-20C~60C)
Humidity 0 - 80% RH, Non condensing
Voltage 110 - 220 Auto Sensing
Consumption AC 120V,60HZ, 12W / AC 230V,50HZ, 12W
Connections 3 Prong NEMA 15AMP
Computer Connections
Direct 16
Daisy Chain or Cascading 128
Mouse PS/2
Keyboard PS/2
Console Connectors
Monitor 1 x HDB-15 F
Remote Console 1 x RJ45 (CAT5e)
Keyboard & Mouse 2x6 pin mini DIN F (KB-Purple, M-Green)
Type 2 x Push Button (Port-Up/Port-Down)
Port selection Hotkeys or OSD (On Screen Display)
Housing Metal
Scan Interval User Specified: 1 - 255 secs.
Video Resolution 1600 x 1200; DDC2B
