Addlogix PowerReach DVI USB KVM Switch

KVM-201DVU-2AC

$299.99

Discontinued
Recommended replacement: Iogear GCS1102
Alternative options: Contact Us

This Addlogix 2-Port PowerReach DVI USB KVM (KVM-201DVU-2AC) is a combo package that comes with 2 sets of 5' USB/DVI cables and a set of audio cables.  The Addlogix 2-Port PowerReach DVI USB KVM (KVM-201DVU-2AC) is designed to control two computers with a DVI flat panel display and USB keyboard and mouse. The Addlogix KVM-201DVU-2AC is also equipped with a USB 2.0 hub that allows high-speed USB 2.0 devices such as external storage drives to be switched and shared between the two computers. In addition, the KVM also supports speaker and microphone switching.

Addlogix PowerReach (KVM-201DVU-2AC) Back view
Addlogix PowerReach (KVM-201DVU-2AC) Back View

The user can select the computers, the connected USB devices, microphone, and speakers independently, using either front-panel buttons or keyboard hotkeys. The set of keyboard, mouse, and flat panel display may be switched independently of the microphone, speakers, and USB 2.0 devices. For example, this special "uninterrupted connection" feature allows the user to control computer #1, while files are being transferred between a high-speed external drive that's connected to the KVM and computer #2. Similarly, user can get control of computer #2, while the speakers connected to the KVM are still playing the files from computer #1.

Addlogix PowerReach (KVM-201DVU-2AC)

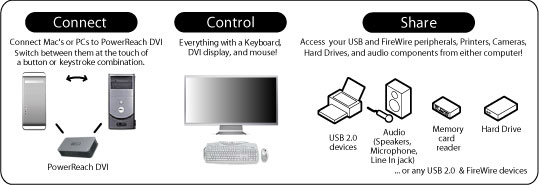

Addlogix PowerReach (KVM-201DVU-2AC) Functional Diagram

Addlogix PowerReach (KVM-201DVU-2AC) Features and Benefits:

  • Control 2 DVI computers using USB keyboard, mouse, and a DVI flat panel display
  • Integrated audio ports allow independent/simultaneous switching and sharing of microphone and speakers
  • Integrated 2-Port USB 2.0 Hub allows independent/simultaneous switching and sharing of high-speed USB 2.0 devices
  • High Speed USB 2.0 compliant
  • UHCI, OHCI USB interface support
  • Simple push button and hotkey switching

Addlogix PowerReach (KVM-201DVU-2AC) Specifications:

Mechanical
Dimensions 8.1 x 4.2 x 2 inch
Size Desktop
Housing Metal
Environmental
Operating Temperature 0 ~ 40° C
Power
Power Adapter DC 9V 500mA (required)
Connections
PC Connections 2
Console Connections 1
PC Port Connections

2 x USB Type B
2 x DVI-I Single Link
2 x 3.5 mm audio in/out jack
2 x 3.5 mm mic in/out jack

Console Port Connections

2 x USB 1.1 Type A for Keyboard/Mouse
2 x USB 2.0 Type A device hub port
1 x DVI-I Single Link
1 x 3.5 mm audio in/out jack
1 x 3.5 mm mic in/out jack

Other
PC Selection USB Hotkey / Push buttons
PC port LED 2
Hub port LED 2
Auto Scan Interval 5 sec
Digital Display Resolution 1920 x 1200 (digital)
