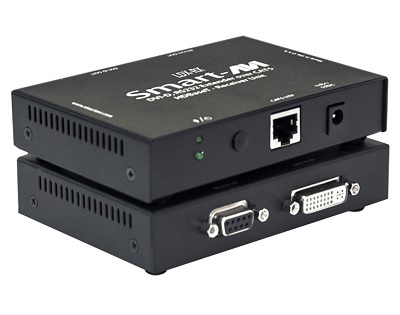

DVI-D and RS-232 Extender Over Cat5e/6
LDX-S
Using HDBaseT technology, the LDX DVI extender is capable of sending a DVI-D signal up to 245 feet over a singleconventional and inexpensive Cat5e/6 cable. HDBaseT technology is superior to older DVI extenders that require a specialCat6 shielded cable to go a short distance. The LDX extender also features RS-232 signal extension, enabling long-distancecontrol of displays or devices.
Smart-AVI LDX Features and Benefits:
- Extends DVI-D up to 245 ft from the Source
- Data Recovery for Digital Video
- Supports up to 1920x1200 Digital Video Resolution (@ 60Hz)
- Supports 4K/2K (3840x2160) video resolution (@ 30Hz)
- Automatic DDC Learning
- Uncompressed Video Using
- RS-232 Extension Enables Long-Distance Control
- External Power Adapter for Transmitter and Receiver Unit
- Plug-and-Play Ready
Smart-AVI LDX-S Package Contents
- LDX-TX Transmitter
- LDX-RX Receiver
- 2 PS5VDC2A Power Supplies
Smart-AVI LDX Applications
- Digital Signage
- Security
- PC Networking
- Conference Center Systems
- Point of Sale
- Camera Surveillance
- Video Phone
- Control Room Systems
- Recording/Production Studios
Smart-AVI LDX-S Specifications:
| Mechanical | LDX-TX |
| Height | 1 in. (2.54 cm) |
| Width | 5.125 in. (13.02 mm.) |
| Depth | 3.625 in. (9.21 mm.) |
| Mechanical | LDX-RX |
| Height | 1 in. (2.54 cm.) |
| Width | 5.125 in. (13.02 cm.) |
| Depth | 3.625 in. (9.21 cm.) |
| Weight | 0.5 lbs. (0.24 kg.) |
| Power Supply | 100-240 VAC/5VDC2A |
| Input Interface | DB9 (Female) |
| Resolution | Up to 1920 x 1200 @60Hz |
| Environment | |
| Operating Temperature | 32-131°F (0-55°C) |
| Storage Temperature | -4-185°F (-20-85°C) |
| Humidity | Up to 95% |
| Video Interface | DB9 (Female) |
