Avocent LongView Cat5 KVM Extender (Local Access)



Replaced by: Avocent LongView 3000
Recommended replacement: Adder X2-DA-SILVER
Alternative options: Contact Us

The Avocent LongView LV620-AM extender extends a keyboard, monitor, mouse, speakers, microphone and serial port up to 500 feet away from your computer. You can improve physical and data security and increase working space by separating your staff from their computers. The Avocent LongView LV620-AM extender allows you to place connected computers up to 500 feet away with any UTP cable and still have control of your keyboard, monitor, mouse, speakers, microphone and serial devices.

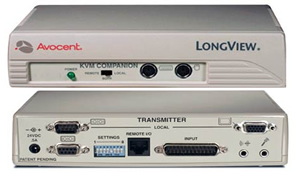

Avocent LongView LV620-AM

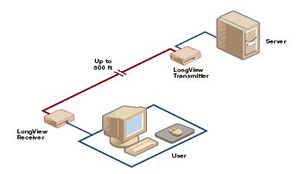

Avocent LongView LV620-AM Function Diagram

Avocent LongView LV620-AM Features and Benefits:

  • Lowers installation cost - Actual extension requires just one CAT 5 cable
  • Security - Extension allows you to: place your system unit, software and sensitive data in a secure area minimize tampering and system damage eliminate unauthorized software installation
  • Automatic configuration without jumpers or switches
  • AutoTuning technology compensates for varying cable types/lengths, and adjusts for signal losses each time a switch is made to a server
  • Supports multimedia projects through high-quality audio and video
  • COM serial port

Avocent LongView LV620-AM Specifications:

Height 1.9" (4.8 cm)
Width 8.1" (20.6 cm)
Depth 4.8" (12.2 cm)
Weight 1 lb. (0.45 kg)
Operating Temperature
Storage Temperature
Operating Voltage 32 to 104 F (0 to 40 C)
Power Frequency -4 to 122 F (-20 to 50 C)
Input 24 VDC @ 500mA from 115 VAC or 230 VAC adaptor
Supported Hardware
Computers Computers using 100 percent IBM compatible, PS/2 compatible peripherals
Monitor non-interlaced VGA, SVGA, XGA, 15-pin high density "D" connector
Peripherals PS/2 or serial mouse, PS/2 keyboard (150mA max)
Approved Agency FCC Class A, UL, C-UL, CE, VCCI Class A
