Addlogix EchoView Wireless Video Adapter

MA-WL-DVI

$300.00

Discontinued
Recommended replacement: Wireless KVM | Wireless Extenders
Alternative options: Contact Us

The Addlogix EchoView MA-WL-DVI is a compact Wireless Video Adapter which is compatible with virtually all the available projectors and video displays in the market. Compatible with wireless (IEEE 802.11 b/g) computers, EchoView revolutionizes how projectors are used. The adapter connects to a projector's VGA or DVI port and enables a computer to display to the projector without any cable.  Sharing this wireless video adapter among users is straight forward . To allow the second user to gain access to the projector, the first user clicks on the "Stop Projection" button. The second user then can gain access to the projector by launching the software application.

This Addlogix wireless video adapter features a CD-less driver download and installation.  When powered on, the unit will show up as an available wireless network connection on the computer's network setting. User simply clicks on the connection to initiate communication to the adapter. Upon user's confirmation, the software driver will then be automatically downloaded and installed to the computer via the wireless network. To send video to the unit and the projector, the user simply launch the driver application by double clicking on the driver icon. There's no need to set up IP address, DHCP settings...etc.

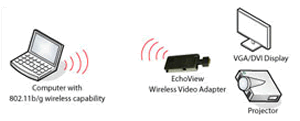

Addlogix EchoView Wireless Video Adapter Application Diagram
Addlogix EchoView Wireless Video Adapter Application Diagram

Addlogix MA-WL-DVI Features and Benefits:

  • Send comptuer video (up to 1024 x 768) wirelessly to video displays
  • Works with VGA or DVI projectors, CRT monitors, flat panels, or TVs
  • Compatible with wireless (802.11 b/g) enabled PC (no additional hardware required)
  • Plug-and-play installation with driver installed from the product (no CD)
  • Presenter no longer needs to be close to the projector (not limited by cable)
  • Access Internet or local area network (LAN) through on-board 10/100 Ethernet interface
  • Compatible with Intel-based Mac's (requires installation of Apple Boot Camp and Windows XP)

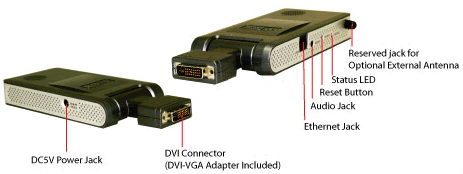

Addlogix Wireless Video Adapter Specifications Diagram
Addlogix Wireless Video Adapter Specifications Diagram

Addlogix MA-WL-DVI Package Includes:

  • EchoView Wireless Adapter
  • Power Adapter with interchangeable US, UK, Euro plugs
  • DVI-VGA Adapter
  • Audio Cable
  • Quick Installation Guide
  • CD-ROM with User's Manual + Software Driver

Addlogix MA-WL-DVI Specifications:

Connectors
Video DVI-I male &
DVI to VGA adapter
Audio 1 x 3.5mm audio jack
2 channel stereo
Network RJ45 10/100 Mbps Ethernet
Wireless 802.11 b/g
Power DC 5V 2A
System Requirements
Operating System Microsoft Windows 2000 Professional (SP4) or later, or Microsoft Windows Home Edition or Professional
Computer System 900 MHz CPU or higher processor-based computer system w/ 256MB RAM, IEEE802.11b/g capability (built-in or external adapter), 10MB free hard drive space
Question: where can i get the drivers for this device?
Answer: According to the manual, the drivers are stored within the unit and should install automatically. Under the troubleshooting section of the manual, it does say to check the network configuration if the drivers do not install automatically. According to our Addlogix contact, no other driver is available for download.

Unfortunately, they also confirmed that this product will not work with Windows Vista or Windows 7.

We have uploaded the manual for your convenience.

Question: can be connected to the computer (with the system) to a second monitor using the monitor mode extension?
Answer: Since this operates as a video adapter, we believe that it should be possible to create an extended desktop environment. However, since this product is discontinued and we do not a have a model to test, we cannot guarantee that it would work.
