Extend VGA video signals up to 1920x1200 resolution and audio over a single Cat5e/6 cable, up to 1,000 feet

Mini-XT

$169.00$131.69
Save $37.31
FREE Shipping on orders over $100

Extend VGA video signals up to 1920x1200 resolution and audio over a single Cat5e/6 cable, up to 1,000 feet

The Mini-XT extender provides an affordable and reliable solution to extend VGA video signals with audio over a single Cat5e/6 cable up to 1,000 feet. Users often find the short distances covered by VGA cables to be limiting, and the Mini-XT offers an easy-to-implement workaround to those distance barriers using an inexpensive Cat5e/6 cable. In addition to video resolutions up to 1920x1080, depending on the length of extension, this extender also transmits stereo audio with a 3.5 mm audio jack. Also, the device has adjustable brightness and focus attenuation dials, which give users better control over the video quality. Both the receiver and transmitter require power, and the transmitter can be powered via the Mini USB port.

 Features:

  • Up to 1,000 feet of Signal Extension
  • Up to 1920x1200 Video resolution
  • Internal EDID for Full Support
  • Supports Stereo Audio
  • Uses Economical Cat5e/6 Cable for Extension
  • Supports Adjustable Video Gain Control to Compensate for Distance
  • Adjustable Brightness Control to Enhance the Signal Under Long Distance Transmission
  • Supports VGA, SVGA, XGA, SXGA and Multisync Monitors
  • Complies with Windows, LINUX, Mac OS 8.6/9/10 and SUN Solaris

Aplications:

  • Corporate or Educational Environments
  • Financial Venues with Remote Servers
  • Industrial Workstations
  • Information Terminals/Kiosks
  • Airports (Air Traffic Control/Passenger Info)
  • Medical Campuses
  • Production Studios

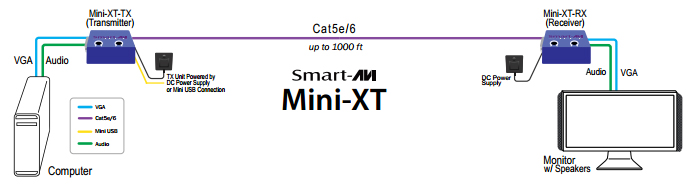

 Diagram

diagram





Specifications:

Video
Video Signal Type 1 VGA
Audio Signal Type Stereo audio over 3.5 mm jack
Connection Type 1 RJ-45 jack for Cat5e/6 cable
RX Bandwidth 150Mhz -3dB @ 1500V/us
Video Input Level Typical +-0.75Vrms
Video Attenuations (RX) 1x Focus, 1x Bright, 1x Ultra Bright Switch
Max Resolution by Distance 1920x1200 - 250 ft; 1600x1200 - 325 ft; 1440x900 - 500 ft; 1280x1024 - 650 ft; 1024x768 - 820 ft; 800x600 - 1,000 ft
Audio
Digital Audio Sample Rate 32Khz 24Bits@256fs
Audio Input Impedance (TX) 10K Ohm
Audio Input Level (TX) 2Vrms (line level)
Audio Bandwidth (RX) -0.1dB@20Hz, -3dB@126Khz
Mechanical
Power Consumed 300mA (RX), 100mA (TX)
Power Source DC5V2A (and Mini USB for TX only)
Operating Temps Operation Temp.: 0-50 degree C Storage Temp.: -20-60 degree C
Humidity 0 - 80%
Dimension 2.55 in (L) x 2.04 in (W) x 1.06 in (H)
Weight .55 lbs
UPC / EAN Barcode icon
UPC 813280018449
EAN 0813280018449
