MiniBoot Remote Reboot and Monitoring Device - 4-Outlet 120V 15A Switched PDU

MiniBoot-4US-15A

$390.00
Voltage: 110V Nominal
Outlets: 4 x NEMA 5-20R
FREE Shipping on orders over $100

In today's digital world, remote power reboot and monitoring functions are essential for hardware systems deployed across a variety of environments. The Austin Hughes MiniBoot-4US-15A Web Power Reboot & Monitoring device offers a cost-effective power solution for most any environment.

With the free, web based Graphic User Interface (GUI), users can recover crashed devices by remote reboot easily, anytime, from anywhere. In addition, the user-friendly GUI provides individual outlet switching On/Off, current monitoring and alarm alert functions. With enterprise level IP authentication, the MiniBoot-4US-15A provides administrators the tools to securely manage remote access with confidence.

Unlike expensive traditional rack power strips - mounted inside server rack enclosures, the MiniBoot's smaller form factor brings enterprise level power distribution outside the rack. The MiniBoot is designed to meet the needs of a variety of industries in a variety of environments - Transportation (Air, Land and Sea), Broadcasting, Entertainment, Advertising, Manufacturing, Mining, Satellite, Defense, Education, Telecommunication, Finance & Banking, Commercial, etc.

MiniBoot Applications ATM, kiosk, Vending
MiniBoot Applications Education

MiniBoot-4US-15A Key Features:

  • Remote Reboot Device Recovery - reboot connected devices easily anytime, from anywhere. With remote reboot, users do not have to wait for on-site services, minimizing device down time.
    • Manual Outlet Switching on/off
    • Automatic Outlet Switching on/off by sensor condition
    • Automatic Outlet Switching on/off scheduling
    • IP-Ping automatically detects a failed system for timely reboot (auto-ping)
  • Enterprise Level IP Authentication - Supports Active Directory (AD), Lightweight Directory Access Protocol (LDAPv3 / LDAPS), Remote Access Dial-In User Service (RADIUS) protocol, or local credential database - including strong passwords and granular user/user group permissions.
  • Power Monitoring via Network & Local Meter - Allows remote power monitoring via the free Graphic User Interface (GUI) and local current monitoring via the MiniBoot blue LED ammeter.
  • Alerts & Alarms - Receive alerts via SNMP, email (SMTP), and syslog when predefined thresholds are exceeded for both the MiniBoot and environmental sensor events.
  • Remote Management - Included User-friendly GUI provides individual outlet switching On/Off, current monitoring and alarm alert functions. The MiniBoot also supports SNMP V2 / V3 integration for clients requiring remote management using existing DCIM ( Data Center Infrastructure Management ) systems.
    • Remote management protocols supported: HTTP(S); SSH Command Line Interface; Telnet; SMTP; IPv6/IPv4
  • Sensors & Wi-Fi - A variety of optional sensors are available to provide environmental monitoring and power management in a single compact device.  An optional Wi-Fi kit (IPD-WIFI) is also available complying with 802.11 g/n/ac protocols.
    • Available sensors include: Temperature & Humidity, Temperature, Smoke, and Mechanical Door Security sensors.
MiniBoot Applications Automation systems production facilities
MiniBoot Applications Commercial offices, telecomunications, remote sites

MiniBoot-4US-15A Package Contents

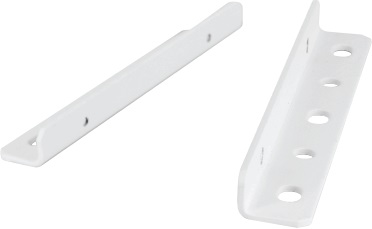

MiniBoot mounting bracket
  • (1) MiniBoot-4US-15A Remote Reboot Device
  • (1) 6ft. C19 to 5-15P input Cord
  • (1) Universal mounting Kit - for easy installation on existing kiosks, walls, furniture, etc.

MiniBoot-4US-15A Specifications:

Mechanical
Height 1.75in. (44.45 mm.)
Width 7.1 in. (180 mm.)
Depth5.51 in. (140 mm.)
Weight2 lbs. (0.9 kg.)
Environmental
Operating Temperature-5-60 degrees Celsius (23-140 Fahrenheit)
Humidity0-95%, non-condensing
Input
Nominal Input Voltage110V
Input Current15 Amps
Input Frequency50-60 Hz
Inlet16A IEC320 C20
Inlet Cord6 ft. IEC320 C19 to NEMA 5-15P cord (included)
Output
Voltage110V
Maximum Output12 Amps (regulatory derated from 15A)
Receptacles4 x NEMA 5-20R
Protection1 x 16A resettable fuse x 1
PDU Features
Local Display3-dgit LED RMS ammeter for input current
Alarm threshold supportOverload, temp, humidity & auto-ping
Remote managementTelnet or SNMP v2 / v3
Outlet ON / OFF / Reboot over network
IP securityLDAPv3 / LDAPS, AD, RADIUS, local credential database
Alarm threshold supportOverload, temp, humidity & auto-ping

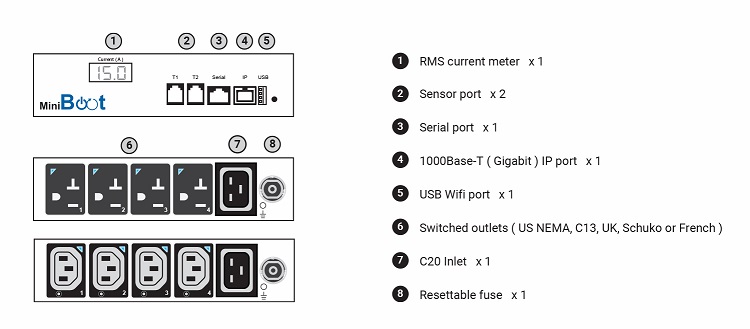

Interface and Protocol Support
1 x IP port10 / 100 / 1000 Base T, RJ45
1 x serial portFor CLI command access
2 x Sensor PortsSupports Temp. / Temp. + Humid. / Smoke sensor / Door switch
1 x USB portFor optional Wi-Fi kit
ProtocolsHTTP(S), SSH Command Line Interface, Telnet, SMTP, IPv6/IPv4
Approvals
EMC ComplianceFCC Part 15 Subpart B
Environment ComplianceRoHS3, Reach & WEEE
Safety ComplianceUL 62368-1:2014
