Avocent Emerge HD Multipoint Extender - Transmitter

MPX1000T-001

$1,095.00

Discontinued
Recommended replacement: Raritan RAV-IP Solution
Alternative options: Contact Us

The Avocent Emerge MPX1000T HD multipoint extender transmitter provides wired or wireless connectivity for moving high-definition content from one source to one or more destinations incorporating High-Definition Multimedia Interface (HDMI) technology. The Avocent MPX1000T can wirelessly transmit high resolution computer graphics, high-definition video, stereo audio, and control data to as many as eight wireless or LAN connected receivers.

The Emerge MPX1000T extender provides two primary user interfaces for system control and configuration: an intuitive menu system that lets you access multiple web pages and a front panel display to control and configure the system. The extender also allows for several methods to control external audio-visual equipment through RS-232 serial and infrared connections. The MPX1000T extender is field upgradeable to support future functionality.

The MPX1000T with the MPX1000R (sold separately) provide high-definition media support for use in professional audio-visual applications. Audio-video synchronization is maintained at each display and all wirelessly connected receivers remain in lock step with each other. Additional interchangeable modules are available for input/output of analog signals including composite video, component video, computer graphics; or digital HDMI/DVI signals.

Note: Media Modules are required for the Emerge HD multipoint extender system and are sold separately.

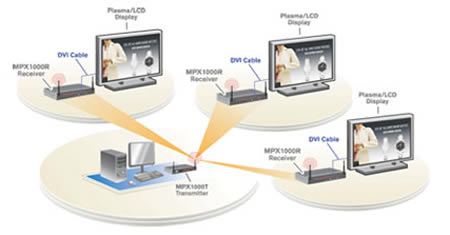

Avocent MPX1000 Wireless DVI-D Installation
Avocent MPX1000 Wireless DVI-D Installation

Avocent MPX1000T Features & Benefits:

  • Wired or Wireless Extension
  • Digital Input and Output
  • Real-Time Compression
  • IR Control
  • Low Latency
  • Web Control Interface
  • Serial Interface
  • Interchangeable Antennas: Directional (optional) and omni-directional (standard)
  • AES 128 Bit Encryption

Avocent MPX1000T Specifications:

Mechanical
Height 1.7 in. (43 mm.)
Width 17 in. (431 mm.)
Depth 7.54 in. (192 mm.)
Weight 5.5 lbs. (2.5 kg.) with full A/V module
Environmental
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -4°F (-20°C) to 120°F (48°C)
Humidity 20% to 80% (Non-condensing)
Power
AC input/frequency 100 -240 VAC / 50 - 60 Hz
Connections (Front)
IR Receiver IR input
3.5 Mini IR Blaster output; the IR Blaster port supports enough drive current to handle 4 IR LEDs
SMA Connector (2) Antenna
Proprietary Zigbee module slot
Connections (Rear)
RJ-45 Ethernet 10/100 IEEE 802.3
RS-232 (Female) Serial control input
Power IEC
Input Module Input module slot
Antennas Two 2dB omni-directional
Question: Does this unit also extend the internet connection to a remote area
Answer: Thank you for your inquiry. Unfortunately no, this device does not extend an internet connection to a remote area. This discontinued device was used for extending video, audio and A/V control signals only.
