Avocent Emerge MPX1550 HD Multipoint Extender - Receiver
MPX1550R
Discontinued
Recommended replacement: Wireless KVM | Wireless Extenders
Alternative options: Contact Us
The Avocent Emerge MPX1550R is a HD Multipoint Extender Receiver Unit. Emerge MPX1550 extenders integrate Avocent's field-proven MPX video extension and distribution engine with 802.11n radio technology and MIMO-based smart antennas.
The multipoint extender provides wireless or wired connectivity for distribution of high-definition content from a source to one or more destinations. The MPX1550 extender combines Avocent's field-proven MPX technology with IEEE 802.11n MIMO-based radios, thereby setting the highest standard for wireless HD video distribution in terms of visual acuity, transmission distance, and noise immunity.
With the MPX1550 system, deployment of a single stream of media to many displays can be accomplished in minutes, even under the most challenging of conditions, with a degree of reliability and quality that rivals a dedicated source device at each and every display. Unlike multiple source devices, however, video and audio remain in perfect lockstep across all displays and failure-prone moving parts are kept to a minimum.
Designed for professional A/V applications involving both motion video and computer graphics, Emerge MPX1550 extenders feature an integrated digital video interface (DVI-I) connector that offers supports direct connection to HDMI, DVI-D, DVI-A, RGB and component source and display devices.
For ease of installation and configuration, Emerge MPX1550 extenders feature an on-board web server. The web interface also offers powerful diagnostic tools for remote or local management. All Emerge MPX1550 products are field upgradeable to support future functionality.
Avocent Emerge MPX1550R Features:
- Wired or Wireless Extension - Provides installation flexibility for wireless or wired high-definition applications.
- Universal DVI-I Video Port - The MPX1550 T/R features a single DVI-I media port that supports RGB, component, DVI-A, DVI-D, and HDMI video.
- Enhanced Audio - Supported audio standards include stereo analog audio supported via white and red RCA connectors.
- Point to Multipoint Distribution - High definition computer graphics or video and associated audio can be distributed to as many as eight display devices.
- HDCP Compliant - For use with Blue-ray and other protected content.
- Serial Control - MPX1550 extenders support broadcast and bi-directional serial data transfers for management of attached display devices.
- IR Control - MPX 1550 extenders support broadcast and bi-directional IR data transfers for session control from the point of display or for display control from the location of the source device. Mini-jack cables allow IR blasters and receivers to be optimally placed.
- Web Control Interface - Allows local or remote control and configuration of the system without special software tools.
- Serial Interface - Allows integration with third party control systems.
- AES 128 Bit Encryption - Audio-visual information is encrypted with built-in Advanced Encryption Standard (AES) for secure transmission.
- Small Form Factor - Smaller profile allows convenient installation and saves space where it's needed the most.

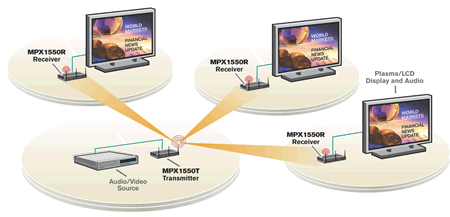

Avocent Emerge MPX1550R HD Extender/Receiver Application Diagram
Avocent Emerge MPX1550R Specifications:
| Mechanical | |
| Height | 1.00 in. (25.4 mm.) |
| Width | 6.92 in. (176 mm.) |
| Depth | 4.55 in. (116mm.) |
| Weight | 1.4 lbs. (0.64 kg.) |
| Environmental | |
| Operating Temperature | 32°F (0°C) to 118.4°F (48°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity | 20% to 80% (Non-condensing) |
| Altitude | Altitude 10,000 ft across the operating temperature range, 35,000 ft across storage temperature range |
| Power (AC input/frequency) | 100 - 240 VAC / 50 - 60Hz |
| Shock | 140G - 3 axis |
| Connections (Front) | |
| 2.5mm Mini-Jack | IR input |
| 3.5mm Mini-Jack | IR blaster output, 38KHz +/- 2KHz; the IR blaster port supports enough drive current to handle 4 IR LEDs |
| RP-SMA Connector (2) | Antenna connectors |
| USB | USB 1.1 (not used at this time) |
| Connections (Rear) | |
| DC Power DC barrel connector | 12VDC @ 1.5Amps |
| Serial (RJ-45) | RJ45 serial port for control of attached display devices. Requires optional DB9-UNI female serial cable. Baud rates up to 38.4K |
| L1 LAN (RJ-45) | IEEE 802.3 10/100 Ethernet, used for web access Note: MPXreceivers offer combined web/video functionality on a single port |
| L2 LAN (RJ-45) | IEEE 802.3 10/100 Ethernet, used for streaming video Note: MPXreceivers offer combined web/video functionality on a single port |
| DVI-I | AV media port that supports a wide range of digital and analog video modes |
| RCA Jacks (2) | Left and right jacks for unbalanced analog audio |
| S/PDIF | Digital audio output. Operation of this port may require a firmware upgrade |
| Video Details | |
| Video Gain | Unity ±1DB |
| Digital Video Standards | HDCP compliant, HDMI 1.2 compliant, DVI-D DDC2B |
| Maximum Wired Video Bit Rate | 80 Mbps |
| Maximum Wireless Video Bit Rate (Topology Mode) | 1-to-1 mode (110 Mbps); 1-to-Many mode (50 Mbps) |
| Video Resolutions (RGB) | Computer (RGB) at 30 fps 640 x 480 @ 60Hz 800 x 600 @ 60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1280 x 768 @ 60Hz 1360 x 768 @ 60Hz SD video (RGB) at 30 fps 480p @ 60Hz 576p @ 50Hz HD video (RGB) at 30 fps 720p @ 50/60Hz |
| Video Resolutions (component video) | SD video (component) at 30 fps 480i @ 60Hz 480p @ 60Hz 576i @ 50Hz 576p @ 50Hz HD video (component) at 30 fps 720p @ 50/60Hz 1080i @ 50/60Hz |
| Video Resolutions (HDMI and DVI-D) | Computer resolution at 30 fps 640 x 480 @ 60Hz 800 x 600 @ 60Hz 1024 x 768 @ 60Hz 1280 x 720 @ 60Hz 1280 x 768 @ 60Hz 1360 x 768 @ 60Hz SD video at 30 fps 480i @ 60Hz 480p @ 60Hz 576i @ 50Hz 576p @ 50Hz HD video at 30 fps 720p @ 50/60Hz 1080i @ 50/60Hz |
| Audio Details | |
| Line Audio Outputs | Line audio inputs less than or equal to 10K Ohm with 0-36dB of headroom |
| Frequency Response | Analog audio frequency response: 20 Hz-20 Khz with a 3dB per octave roll-off beginning at 14 kHz |
| Radio Bands | |
| UNII 1: (4 channels) | 5.15 to 5.25 GHz: These are available as 2 bonded channels |
| UNII 3: (4 channels) | 5.725 to 5.825 GHz: These are available as 2 bonded channels |
| ISM (11 channels) | 2.412 to 2.462GHz (requires firmware upgrade) |
| Extension Distances | |
| Wired Distance | Wired distance limitations conform to Ethernet standards for a single subnet (no routing) |
| Wireless Distance | Up to 300 ft (90 m) line of sight and 150 ft (45 m) through interior (gypsum) walls |
| Regulatory Distances (CMN:2003 Series) | |
| Standards | FCC Class B, UL, cUL, RoHS, CE, ICES-003, WEEE |
| Warranty | 2 years |
