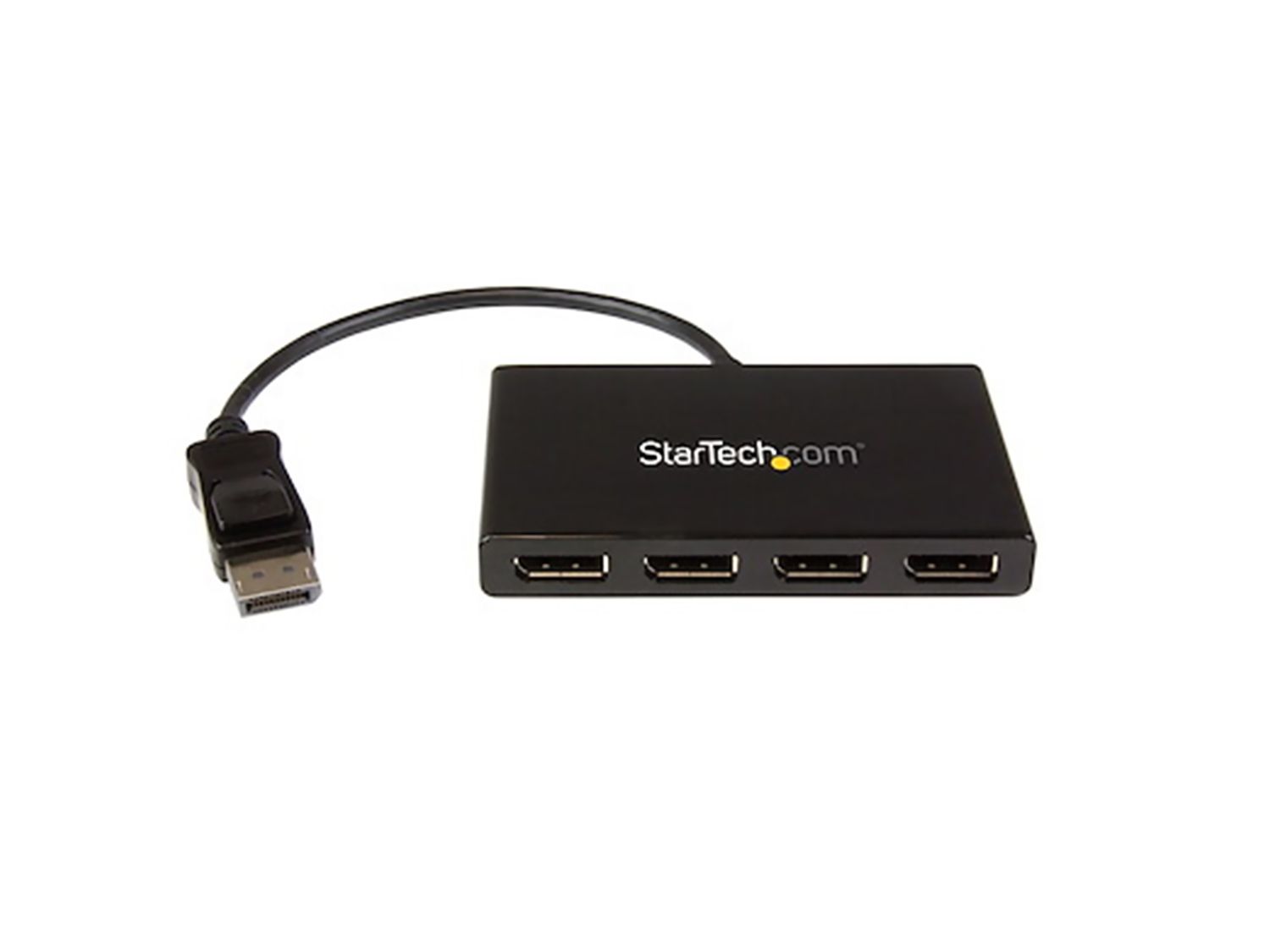

StarTech MSTDP124DP 4-Port Multi Monitor Adapter

MSTDP124DP

$184.99$139.00
Save $45.99
FREE Shipping on orders over $100

The MSTDP124DP 4-Port 4K DisplayPort Splitter is an excellent solution for anyone who needs to send one DisplayPort high definition video source to up to four DisplayPort displays. The MSTDP124DP can split audio and visual on four DisplayPort monitors which is ideal for any multi-display application.

The MSTDP124DP is compatible with DisplayPort adapters enabling you to connect HDMI, VGA, or DIV Displays, making MSTDP124DP exceptional compatibility.

MSTDP124DP Features

  • MULTIPLE MONITORS: DisplayPort multi monitor adapter drives 4x DP displays (DP 1.2/HBR2/MST/21.6Gbps) at 1080p 60Hz using a DP port on Windows PCs Extended 4x displays not supported on macOS (supports single display or mirrored screen)
  • COMPATIBLE WITH: 4-Port MST video splitter supports laptops, computers or desktop graphics cards with DP 1.2 video out (supporting MST and HBR2), incl. brands like HP, Dell & Lenovo and AMD & nvidia video cards
  • INCREASE PRODUCTIVITY: With minimal footprint, this multi-stream transport hub helps increase your productivity by adding extended or mirrored screens to your workstation at the office/home office
  • EASY TO USE: 4-port multi-monitor adapter uses MST technology to natively support DP monitors delivering uncompressed video; Works w/Windows and provides an easy driverless setup
  • CONVENIENCE: Equipped w/ built-in 7.5in (19cm) cable for video (DisplayPort with latching connector), and an AC power adapter (included), this MST hub won't clutter your workspace and can be used anywhere

MSTDP124DP Port diagram
Use the MSTDP124DP DisplayPort Splitter to duplicate a single source on multiple screens, or extend a single source across four screens.

MSTDP124DP DisplayPort Splitter Package Contents

  • 1x MSTDP124DP 4-Port Multi Monitor DisplayPort MST Hub
  • Universal power adapter (NA/EU/UK/AUS)
  • 1x User Instructions

MSTDP124DP DisplayPort Splitter Specifications

Physical
Width 2.6 in. (65mm)
Height 0.6 in. (15mm)
Length 15.2 in. (38.6 cm)
Weight 4.6oz (129g)
Housing Plastic
Connectors (Output) 4 x DisplayPort 1.2 Female (Black)
Connectors (Input) 1 x DisplayPort 1.2 Female (Black)
Video
Max. Resolution Up to 3840 x 2160 @30hz
Power
Connectors 1 x AC Adapter (100-240 AC)
Consumption 15W
Environmental
Operating Temperature 0°C to 45°C (32°F to 113°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
UPC / EAN Barcode icon
UPC 0065030860581
EAN 00065030860581
