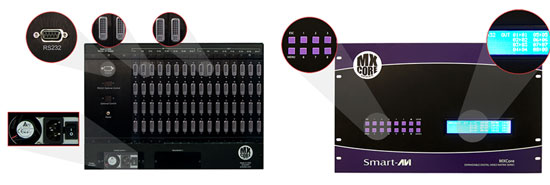

MXCORE-DX Expandable DVI-D 8X32 Matrix Switcher

The MXCore-DX Series of DVI-D Matrix Routers allows you to distribute and route any DVI-D input source onto multiple DVI-D display devices. The MXCore-DX Series supports high resolutions up to 1080p, 2K and 1920x1200 with no loss of picture clarity and no ghosting of images.

The DVI-D cable is automatically equalized and can compensate the long distance by reducing the number of additional input signals. The Matrix supports DVI-D operation at the maximum TDMS rate of 2x1.65 Gb/s.

*8x32 Matrix Switcher

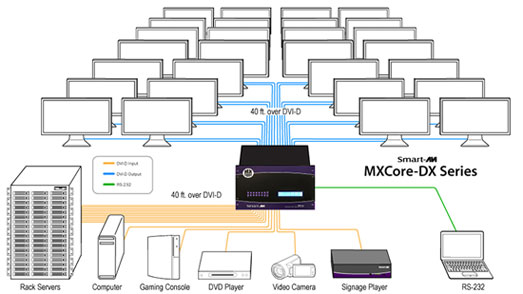

Applications

• Wall Displays
• Digital Signage
• Airports
• Dealer Rooms
• Control Rooms
• Audio/Visual Presentations
• Shopping Centers
• Security
• Point of Sale
• Hotels/Resorts
• Hotels/Resorts
• KVM Switch

Features

• Multiple EDID Support
• Programmable EDID from computer
• Automatic EDID learning from monitor
• Increases productivity by providing access to up to 32 computers from 32 workstations
• 32 x 32 non blocking, single link DVI-D matrix switch
• Automatic output pre-emphassis and drive level
• Automatic receiver equalization
• Supports DVI-D operation at the maximum rate of 2x1.65 Gbps
• Support resolutions up to 1080p, 2K, and 1920x1200
• Control from either front panel or RS-232
• Available IR remote
• USB Control Available
• Ethernet control available
• Easy-to-use Windows based software

SmartAVI MX Core 8x32 Specifications

UPC 813280022255
EAN 0813280022255
