MXCORE-DX Expandable DVI-D 16X16 Matrix Switcher


Save $2,560.82
FREE Shipping on orders over $100

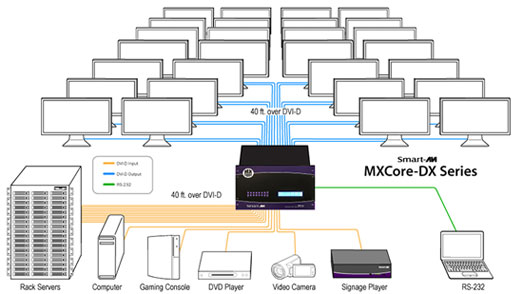

The MXCore-DX Series of DVI-D Matrix Routers allows you to distribute and route any DVI-D input source onto multiple DVI-D display devices. The MXCore-DX Series supports high resolutions up to 1080p, 2K and 1920x1200 with no loss of picture clarity and no ghosting of images.

The DVI-D cable is automatically equalized and can compensate the long distance by reducing the number of additional input signals. The Matrix supports DVI-D operation at the maximum TDMS rate of 2x1.65 Gb/s.

*16x16 Matrix Switcher


  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point of Sale
  • Hotels/Resorts
  • Hotels/Resorts
  • KVM Switch



  • Multiple EDID Support
  • Programmable EDID from computer
  • Automatic EDID learning from monitor
  • Increases productivity by providing access to up to 32 computers from 32 workstations
  • 32 x 32 non blocking, single link DVI-D matrix switch
  • Automatic output pre-emphassis and drive level
  • Automatic receiver equalization
  • Supports DVI-D operation at the maximum rate of 2x1.65 Gbps
  • Support resolutions up to 1080p, 2K, and 1920x1200

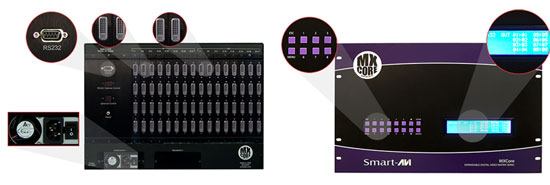

  • Control from either front panel or RS-232
  • Available IR remote
  • USB Control Available
  • Ethernet control available
  • Easy-to-use Windows based software


SmartAVI MX Core 16x16 Specifications

Height 12 in. (30.48 cm)
Width 12 in. (30.48 cm.)
Depth 17.12 in. (43.48 cm.)
Weight20 lbs
Video Amplifier Bandwidth3..2G
Input Video Signal Video (TMDS) 0.5~1.0 Vpp
Input DDC Signal5 volts
Signal SupprtsDVi-D Standard, DVI-D and HDCP compliant
Pixel RatesClock Frequency beyond 165 Mpix/seconf
Format4:4: and 4:2:2 data imput formats
ResolutionUp to 1080p, 2K and 1920x1200
Input/Output Cards4x DVI Female (each)
Input /Output Slots8 cards of 4 DVI-D input (each)
Video TypeRGB/YCBCR : 24/30/36-bits, YCBCR: 8/10/12/16/20/24 bits
Power Supply50/60Hz, 100-230 VAC
IR Controls38Khz RC5
RS2329600bps, Software flow DB9 Female
