MXCORE-DX Expandable DVI-D 32X8 Matrix Switcher

MXC-DX32X08S

$13,799.00$10,752.47
Save $3,046.53
FREE Shipping on orders over $100
smartavi_madeinusa

The MXCore-DX Series of DVI-D Matrix Routers allows you to distribute and route any DVI-D input source onto multiple DVI-D display devices. The MXCore-DX Series supports high resolutions up to 1080p, 2K and 1920x1200 with no loss of picture clarity and no ghosting of images.

The DVI-D cable is automatically equalized and can compensate the long distance by reducing the number of additional input signals. The Matrix supports DVI-D operation at the maximum TDMS rate of 2x1.65 Gb/s.

*16x8 Matrix Switcher

Applications

  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point of Sale
  • Hotels/Resorts
  • Hotels/Resorts
  • KVM Switch

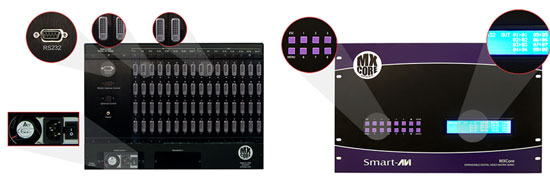

products

Features

  • Multiple EDID Support
  • Programmable EDID from computer
  • Automatic EDID learning from monitor
  • Increases productivity by providing access to up to 32 computers from 32 workstations
  • 32 x 32 non blocking, single link DVI-D matrix switch
  • Automatic output pre-emphassis and drive level
  • Automatic receiver equalization
  • Supports DVI-D operation at the maximum rate of 2x1.65 Gbps
  • Support resolutions up to 1080p, 2K, and 1920x1200
  • Control from either front panel or RS-232
  • Available IR remote
  • USB Control Available
  • Ethernet control available
  • Easy-to-use Windows based software

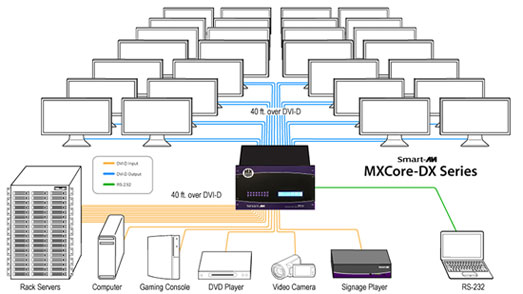

diagram

SmartAVI MX Core 16x8 Specifications

Input/Output16x8
Mechanical
Height 12 in. (30.48 cm)
Width 12 in. (30.48 cm.)
Depth 17.12 in. (43.48 cm.)
Weight20 lbs
Video Amplifier Bandwidth3..2G
Input Video Signal Video (TMDS) 0.5~1.0 Vpp
Input DDC Signal5 volts
Signal SupprtsDVi-D Standard, DVI-D and HDCP compliant
Pixel RatesClock Frequency beyond 165 Mpix/seconf
Format4:4: and 4:2:2 data imput formats
ResolutionUp to 1080p, 2K and 1920x1200
Input/Output Cards4x DVI Female (each)
Input /Output Slots8 cards of 4 DVI-D input (each)
Video TypeRGB/YCBCR : 24/30/36-bits, YCBCR: 8/10/12/16/20/24 bits
Power Supply50/60Hz, 100-230 VAC
IR Controls38Khz RC5
RS2329600bps, Software flow DB9 Female
UPC / EAN Barcode icon
UPC 813280022323
EAN 0813280022323
