MXCORE-UD Expandable DVI-D 16X12 Matrix Switcher

MXC-UD16X12S

$14,199.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

The MXCore-UD is a DVI-D video router that enables users to route HD signals up to 450 feet over CAT 5e/6 cables, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations of 16x12. Pristine video has become the standard for entertainment, video systems and digital signage, but DVI video routing has been confined by the necessity of short, bulky and unsightly cables.

Applications

  • Hotels/Resorts
  • KVM Switch
  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch

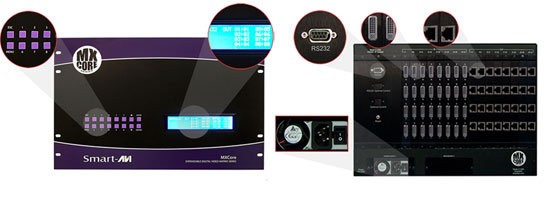

products

Features

  • Switches any DVI-D source input to any output up to 32x32
  • Sources can be routed independently to any display
  • Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
  • Supports PC resolutions VGA, SVGA, SXGA,UXGA and WUXGA (1920 x 1200)
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Input cable equalization
  • Switching controlled via RS-232, IR, Smart Control GUI or web server
  • Front panel 4x40 LCD display
  • Easy switching via front panel
  • Browser Graphical User Interface (GUI)
  • Web-based interface
  • Telnet support
  • Firmware upgradeable for future support
  • Extends DVI-D, IR output over single Cat5/5e/6UTP cable
  • Extends IR and signals for remote control
  • Data signals up to 3.4 Gbps
  • Support RC5 IR for local switching
  • Support IR bypass for 36 to 60Khz

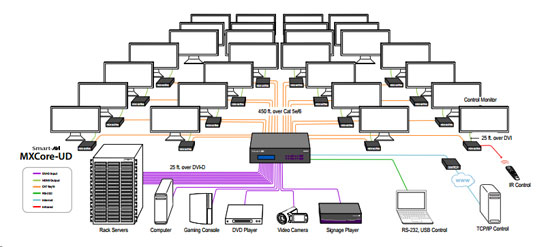

diagram

SmartAVI MXCore-UD 16x12 Specifications

Mechanical
Input/Output16x12
Height 12 in. (30.48 cm)
Width 17.12 in. (43.48 cm.)
Depth 12 in. (30.48 cm.)
Weight20lbs
Video Amplifier Bandwidth3.2G
Input Video SignalVideo (TMDS) 0.5~1.0 Vpp
Input DDC Signal5 volts
Signal SupportsDVI Standard, DVI-D and HDCP compliant
Pixel RatesClocke frequency beyond 165 Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480p,720p, 1080i, 1080p
Input/Output Cards4x CAT5e/6
Video TypeRGB/YCBCR : 24/30/36-buts, YCBCR : 8/10/12/16/20/24 bits
IR38Khz RC5
Front2x8 keyboard with 4x40 LCD
RS2329600 bps, software flow DB9 female
TCP/IPWebserver, Telnet
UPC / EAN Barcode icon
UPC 813280022569
EAN 0813280022569
