MXCORE-UH Expandable HDMI 8X32 Matrix Switcher



For upgrade or replacement options: Contact Us

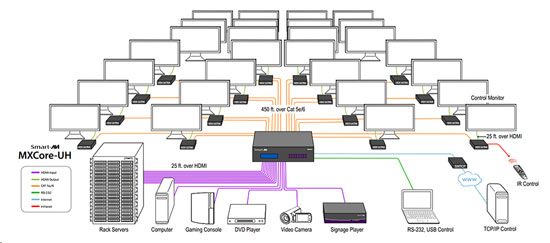

The MXCore-UH is an HDMI video router that enables users to route HD signals up to 450 feet over a single CAT 5e/6 cables, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations up to 8x32.


  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch



  • Switches any HDMI source input to any output up to 32x32
  • Sources can be routed independently to any display
  • Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
  • Supports digital formats in Deep Color to 12bit per color
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Input cable equalization
  • Switching controlled via RS-232, IR, Smart Control GUI or web server
  • Front panel 4x40 LCD display
  • Easy switching via front panel
  • Browser Graphical User Interface (GUI)
  • Web-based interface
  • Telnet support
  • Firmware upgradeable for future support
  • Extends HDMI, IR output over single Cat5/5e/6UTP cable
  • Extends IR and signals for remote control
  • Data signals up to 3.4 Gbps
  • Support RC5 IR for local switching
  • Support IR bypass for 36 to 60Khz


SmartAVI MXCore-UH 8x32 Specifications

Height 12 in. (30.48 cm)
Width 17.12 in. (43.48 cm.)
Depth 12 in. (30.48 cm.)
Video Amplifier Bandwidth3.2G
Input Video SignalVideo (TMDS) 0.5~1.0 Vpp
Input DDC Signal5 volts
Signal SupportsHDMI and HDCP compliant
Pixel RatesClocke frequency beyond 165 Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480p,720p, 1080i, 1080p
Input/Output Cards4x CAT5e/6
Video TypeRGB/YCBCR : 24/30/36-buts, YCBCR : 8/10/12/16/20/24 bits
IR38Khz RC5
Front2x8 keyboard with 4x40 LCD
RS2329600 bps, software flow DB9 female
TCP/IPWebserver, Telnet
UPC / EAN Barcode icon
UPC 813280018470
EAN 0813280018470
