Expandable HDMI 32x32 Matrix Over Cat5e/6



Recommended replacement: Gefen GEF-HDFST-MOD-32432-HD
Alternative options: Contact Us

The MXCore-UH is an HDMI video router that enables users to route HD signals up to 425 feet over a single CAT 5e/6 cables, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations up to 32x32.

Pristine video has become the standard for entertainment, video systems and digital signage, but HDMI video routing has been confined by the necessity of short, bulky and unsightly cables. The MXCore-UH, utilizing HDBaseT technology, breaks the distance limits that have tethered users as it facilitates the routing of crystal clear 1080p HD video, multi-channel audio, Ethernet, IR and power up to an incredible 425 feet through the use of inexpensive CAT 5e/6 cables. With unprecedented flexibility and convenience, the MXCore-UH is overhauling the old challenges of HD Matrix routers with an elegant and easy-to-install solution.

The MXCore-UH can direct as many as 32 HD inputs and 32 HD outputs effortlessly. Routing HDMI signals across long distances from the user-friendly MXCore-UH exponentially increases users' ability to create the ideal digital video experience in any environment.

The MXCore-UH gives users the option of remotely switching the source - the primary function of a video router - as well as controlling the input sources, all from one device. Thanks to reliable CAT 5e/6 connections, it's never been easier to manage signal switching and the sources being switched all from a single control. This additional functionality allows for superior routing and viewing in contexts like home entertainment, digital signage, medical systems, live events and countless other venues.

SmartAVI MXC-UH32X32S Features:

  • Switches any HDMI source input to any output up to 32x32
  • Sources can be routed independently to any display
  • Supports high definition video resolutions of 480p, 720p, 1080i and 1080p
  • Supports digital formats in Deep Color to 12bit per color
  • Supports EDID for total control of compliant displays
  • Delivers uncompressed digital video with zero signal loss
  • Input cable equalization
  • Switching controlled via RS-232, IR, Smart Control GUI or web server
  • Front panel 4x40 LCD display
  • Easy switching via front panel
  • Browser Graphical User Interface (GUI)
  • Web-based interface
  • Telnet support
  • Firmware upgradeable for future support
  • Extends HDMI, IR output over single Cat5/5e/6UTP cable
  • Extends IR and signals for remote control
  • Data signals up to 3.4 Gbps
  • Support RC5 IR for local switching
  • Support IR bypass for 36 to 60Khz

SmartAVI MXC-UH32X32S Applications:

  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch

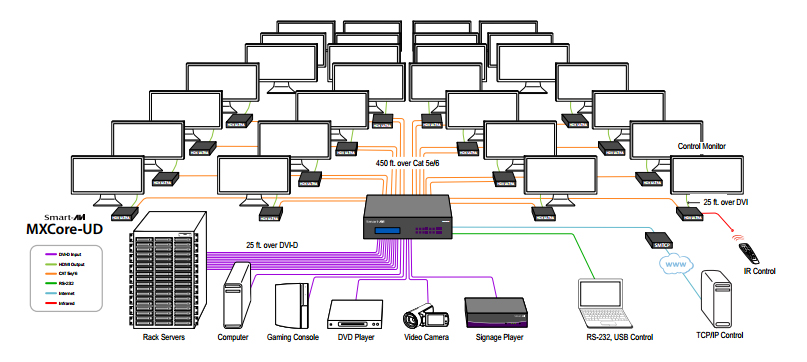

SmartAVI MXC-UH32X32S Application Diagram

SmartAVI MXC-UH32X32S Application Diagram

 SmartAVI MXC-UH32X32S Specifications:

Width 17.125 in.
Height 12 in.
Depth 12 in.
Video Amplifier Bandwidth 3.2G
Input Video Signal: Video (TMDS) 0.5~1.0Vpp
DDC Signal: 5 volts
Signal Supports HDMI and HDCP compliant
Pixel Rates Clock frequency beyond 165Mpix/second
Format 4:4:4 and 4:2:2 data input formats
Resolution 480p, 720p, 1080i, 1080p
Cards Input: HDMI
Output: 4x CAT5e/6e
Slots Input: Up to 8 cards of 4 HDMI input each
Output: Up to 8 cards of 4 CAT5e/6 output each
Video Type RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
Power 50/60Hz, 100~230 VAC
Working Temperature 0-55 °C
Storage Humidity 10%~90%
UPC / EAN Barcode icon
UPC 813280022736
EAN 0813280022736
