32x32 HDMI video wall and digital signage matrix solution

MXWALL-3232S

$32,399.00$25,245.97
Save $7,153.03
FREE Shipping on orders over $100

For the ultimate in control over a high definition video matrix, the new MXWall delivers complete flexibility to route and distribute 32 HD inputs and 32 HD outputs with video wall functionality. No other video matrix on the market today provides the unique combination of full matrix switching with included video wall operation, which offers the ideal video routing solution for the most demanding of environments and applications.

Product Benefits and Features

  • Expandable to 32 HDMI Inputs and 32 HDMI Outputs
  • Full Hardware Solution, No Operating System Required
  • Real Time Image Display, No Dropped Frames
  • Supports Multiple Video Wall Layouts
  • Built-In Digital Signage Functionality
  • Delivers Reliable, "24/7" Uninterrupted Use
  • HDMI 1.4 and HDCP Compliant
  • Output Resolution up to 1920x1080
  • Scales Each Input to 1080p
  • Supports Partial Input and Output Cards with Mixed Interpolation
  • High-Speed Bus Parallel Processing Technology and High-Bandwidth Uncompressed Processing
  • Control via Front Panel Buttons, RS-232 or Ethernet
  • User-Friendly GUI Software
  • Supports Open Protocol for Integration with AMX, Creston
  • Android Application Available
  • Integrated Media Player for Video, Photos and Web Browsing with Local Storage

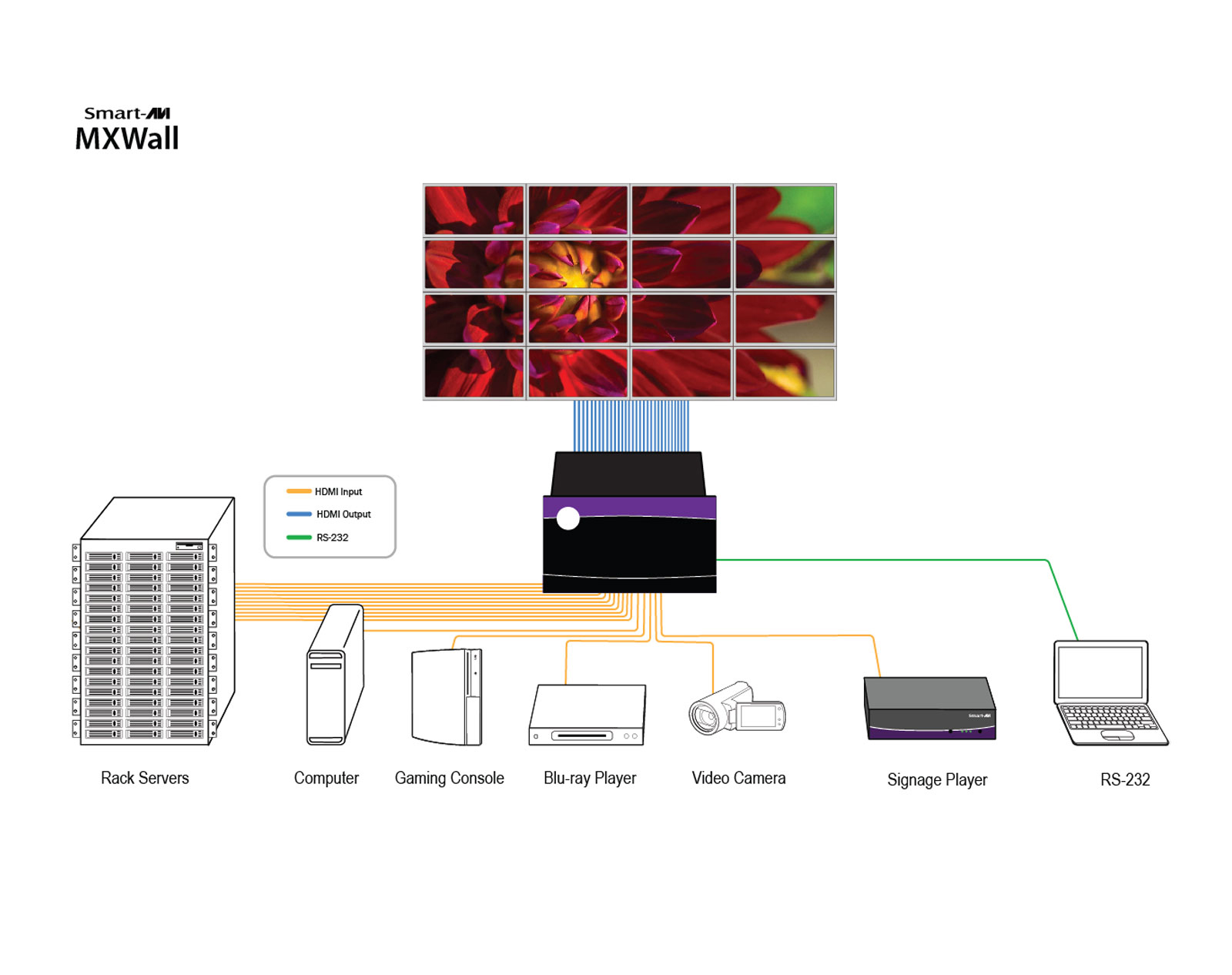

Product Diagram

Mechanical
Width17.125 in (435 mm.)
Height12 in. (305 mm.)
Depth12 in. (305 mm.)
Weight30 lbs. (13.60 kgs.)
Video
Video Amplifier Bandwidth3.2G
Input Video SignalVideo (TMDS) 0.5~1.0Vpp
Input DDC Signal5 volts
CompliancesHDMI 1.4 and HDCP compliant
Pixel RatesClock frequency beyond 165Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480p, 720p, 1080i, 1080p
Input Card FormatHDMI
Output Card FormatHDMI
Input SlotsUp to 8 cards of 4 HDMI input each
Output SlotsUp to 8 cards of 4 HDMI output each
Video TypeRGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
Controls
Front Panel2x8 keyboard with 4x40 LCD
RS-2329600bps, Software flow DB9 Female
TCP/IPWebserver, Telnet
Other
Operating Temperatures32-131°F (0-55°C)
Humidity10-90% Non-Condensing
Power50/60Hz, 100~230 VAC
Consumption300W
UPC / EAN Barcode icon
UPC 813280022804
EAN 0813280022804
