12 x 4 HD Video Wall Processor & Matrix Switch

MXWALL-LT-1204-S


The MXWall-LT is a video wall processor and matrix switch with 12 HDMI inputs and 4 DVI outputs. Compact, plug-and-play, and excellent for mid-sized video wall displays between 4-12 screens with resolutions up to 1080p (1920x1080 @ 60Hz) Full HD. The MXWall-LT is simple to control, outfitted with easy front-panel buttons and optional RS-232 control. Included at no cost is the MXWall Manager software, which allows users manually create and adjust their ideal video wall displays using simple click-and-drag operation. Users can choose from a number of great per-configured screen modes as well, displaying content in full video wall, four-screen quad, and individual screen modes with the press of a button. The MXWall-LT also features TCP/IP web control for LAN-connected units, so users can control the contents of the video wall from the comfort of a PC workstation. Its compact design and powerful processing power makes the MXWall-LT the perfect solution for any video wall installation. Plug-and-play, the LT is immediately ready for use as soon as it is connected to an AV set-up; no additional drivers or installers required.

Features & Benefits

  • Complete, Real-Time Hardware Solution
  • Plug-and-play ready
  • (12) HDMI inputs
  • (4) DVI outputs
  • Output resolution up to 1080p (1920x1080 @ 60Hz)
  • Supports RS-232 and TCP/IP
  • Reliable 24/7 Uninterrupted Use
  • Flexible video wall modes
  • Easy control (front-panel buttons, software, and optional RS-232)
  • HDCP and HDMI 1.4 compliant
  • Includes user-friendly MXWall Manager Software: FREE!
  • Integrated scaler

In the Box

  • (1) MXWall-LT Video Wall Processor and Matrix Switch
  • (1) Power Supply
  • (1) MXWall Manager software installation CD
  • (1) User Manual

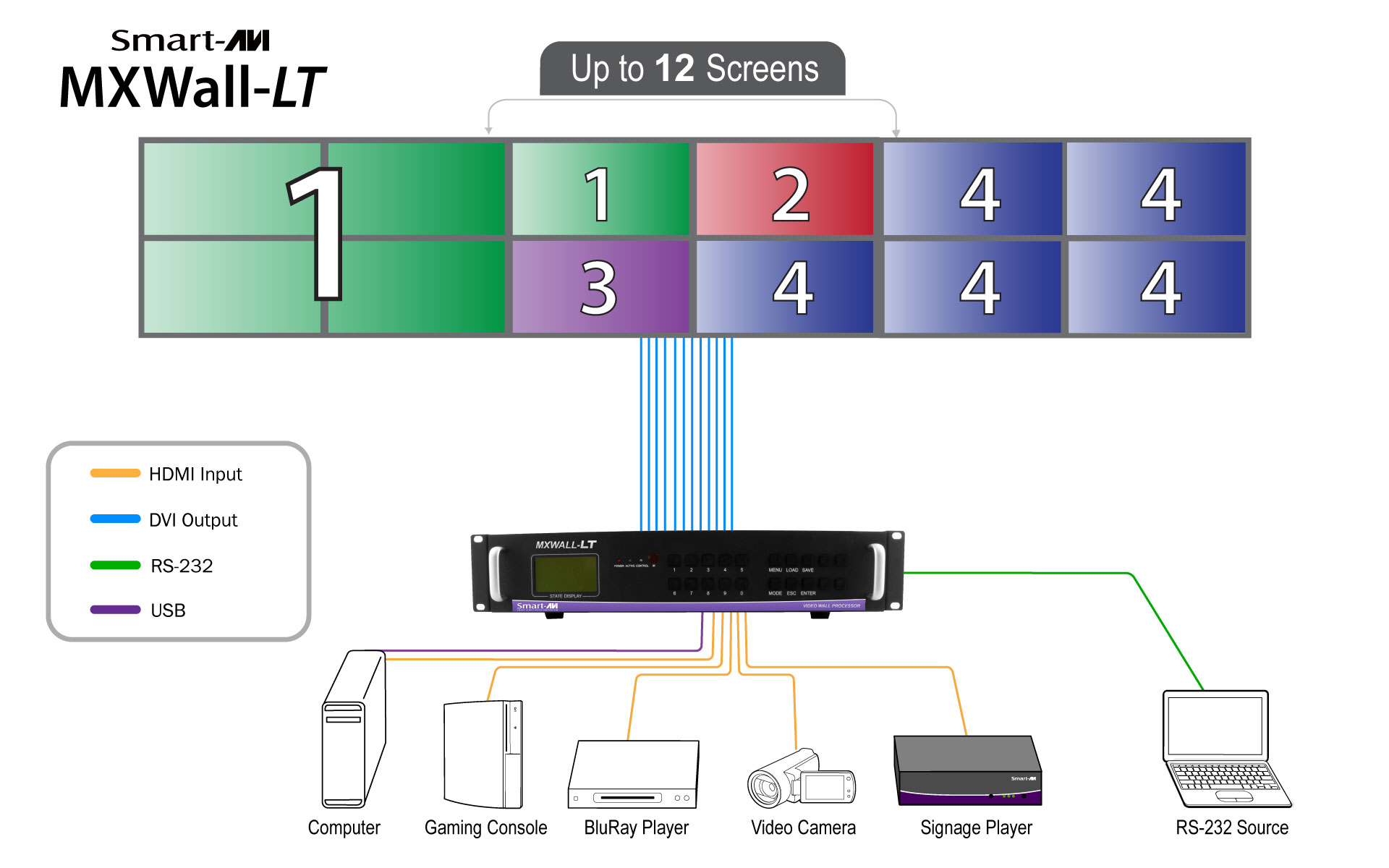

MXWall-LT Use Diagram

Product Specifications

Video
Video Amplifier Bandwidth32.G
Input Video SignalVideo (TMDS) 0.5~1.0 Vpp
Input DDC Signal5 Volts
CompliancesHDMI 1.4 and HDCP compliant
Pixel RatesClock frequency beyond 165Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480p, 720p, 1080i, 1080p
Input Card Format(12) HDMI
Output Card Format(4) DVI
Input Slots3 Cards of 4 HDMI inputs
Output Slots1 Card of 4 DVI outputs
Video TypeRGB/YCBCR : 24/30/36-bits, YCBCR: 8/10/12/16/20/24-bits
Controls
FrontFront-panel tactile switch buttons
RS-2329600bps, Software flow DB9 Female
TCP/IPTelnet
Environmental
Operating Temperature32°F - 131°F (0-55°C)
Humidity10-90% non-condensing
Mechanical
Weight20 lbs
Width17 in
Height3.5 in.
Depth15 in.
Power
Power Supply50/60Hz, 100-230 VAC
Consumption300W
