32x32 HDMI video wall and digital signage matrix solution

MXWALLPRO-3232S

$35,200.00$27,428.57
Save $7,771.43
FREE Shipping on orders over $100

Combining the fully functional switching capabilities of a matrix and the versatile high definition capabilities of a converter, SmartAVI's MXWall Pro is the ideal all-in-one video wall hardware solution. Specifically designed and optimized for the most demanding environments and applications, the MXWall Pro lets users effortlessly manage and route up to 32 HDMI video sources to 32 HD displays in real time in stunning 1080p resolution.

Stun and enthrall with robust multi-screen configurations and full scaling capabilities across 32 screens. Completely compatible with HDCP and HDMI 1.4 connectors, the MXWall Pro reliably transmits HD content across scalable display configurations in real-time for 24/7 uninterrupted use.

Plug-and-play ready, the MXWall Pro requires absolutely no technical skill to install and operate. With an integrated media player for video, photos, and web browsing, the MXWall Pro offers the ease and freedom of user-friendly customization with the secure reliability of a hardware-only solution. Save content on the device itself with local storage, and never have to connect the box to your computer: the MXWall Pro is ready to go when you are.

Product Benefits and Features

  • Complete, Real-Time Hardware Solution
  • Plug-and-play ready
  • Expandable 32 HDMI inputs and 32 HDMI outputs
  • Output resolution up to 1080p @ 30Hz
  • Supports Video Wall and Digital Signage Layouts
  • Reliable 24/7 Uninterrupted Use
  • Easy control and access
  • HDCP and HDMI 1.4 compliant
  • User-friendly MXWall Manager Software
  • Integrated Media Player for videos, photos, and web browsing with local storage

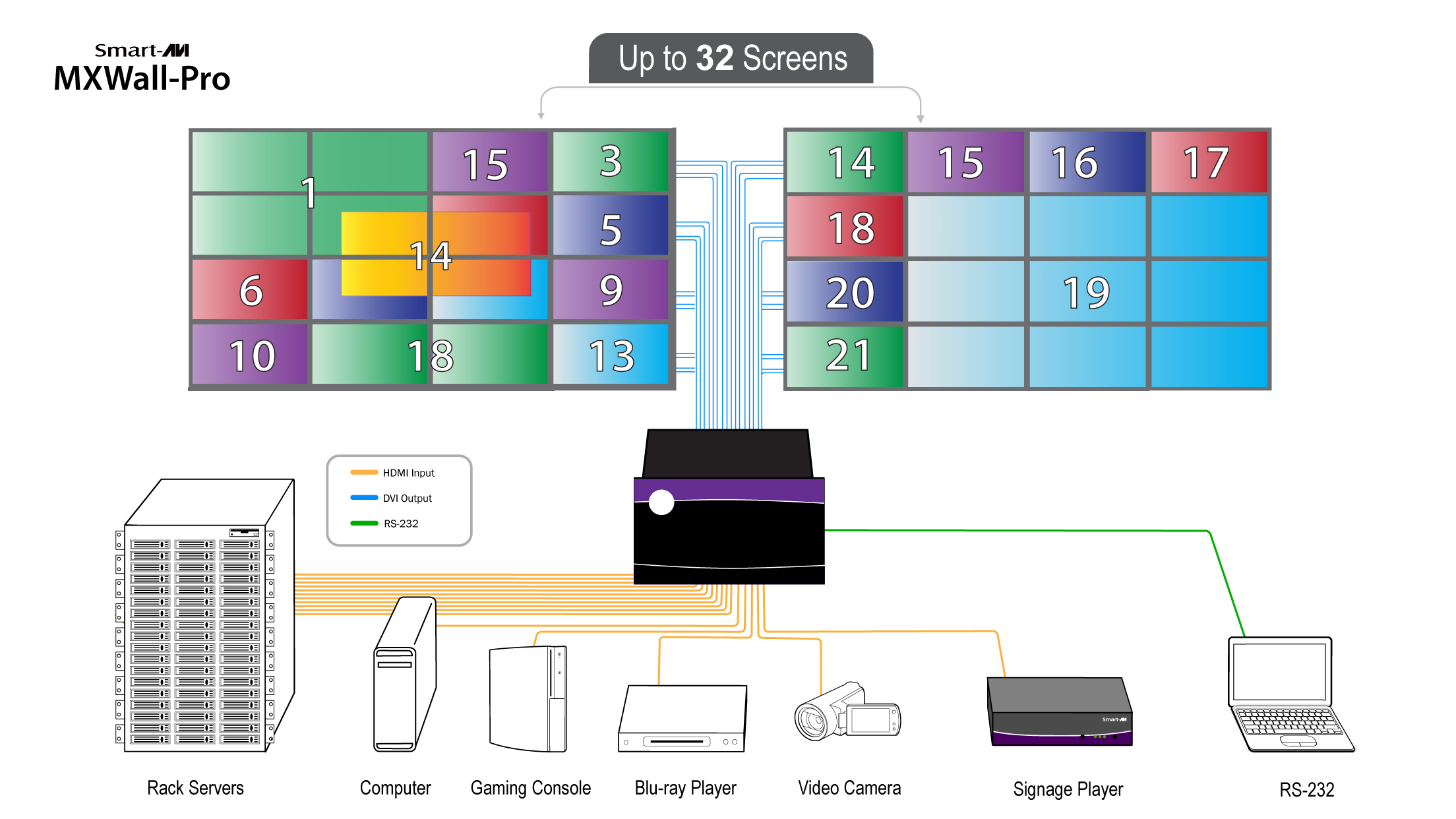

Product Diagram

Mechanical
Width17.125 in (435 mm.)
Height12 in. (305 mm.)
Depth12 in. (305 mm.)
Weight30 lbs. (13.60 kgs.)
Video
Video Amplifier Bandwidth3.2G
Input Video SignalVideo (TMDS) 0.5~1.0Vpp
Input DDC Signal5 volts
CompliancesHDMI 1.4 and HDCP compliant
Pixel RatesClock frequency beyond 165Mpix/second
Format4:4:4 and 4:2:2 data input formats
Resolution480p, 720p, 1080i, 1080p
Input Card FormatHDMI
Output Card FormatDVI
Input SlotsUp to 8 cards of 4 HDMI input each
Output SlotsUp to 8 cards of 4 DVI output each
Video TypeRGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits
Controls
Front Panel2x8 keyboard with 4x40 LCD
RS-2329600bps, Software flow DB9 Female
TCP/IPWebserver, Telnet
Other
Operating Temperatures32-131°F (0-55°C)
Humidity10-90% Non-Condensing
Power50/60Hz, 100~230 VAC
Consumption300W
