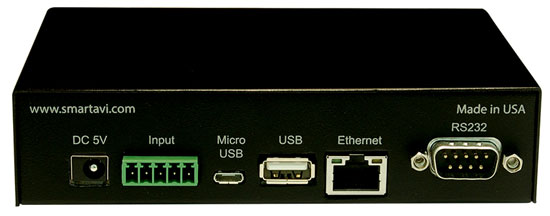

  • NET-IP-PROS - SmartAVI Net-IP-Pro - Click To Enlarge

TCP/IP Control Module via RS-232 for SmartAVI Matrixes

NET-IP-PROS

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100
smartavi_madeinusa

The NET-IP-PRO is an RS-232 control module that allows most SmartAVI switching matrixes to be controlled remotely via HTTP or TELNET. Manage the switching functions of your matrix with ease from anywhere in the world. With the NET-IP-PRO you can save up to 10 preset input/output configurations for easy access. TELNET access provides transparent command control of your matrix, perfect for use with automated third-party control software.

Applications

  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts

product

Features

  • Supports HTTP and TELNET control
  • 10/100 Ethernet Interface
  • Up to 10 user definable configurations
  • Password Protected
  • Supports up to 5 users
  • IP Configuration via TCP/IP and RS-232
  • Flexible control of several types of matrixes and other SmartAVI products

diagram

SmartAVI Net-IP-Pro Specifications

Mechanical
Height 1 in. (2.54 cm)
Width 2.81 in. (7.13 cm.)
Depth 3.37 in. (8.55 cm.)
PowerExternal 100-240 VAC/5VDC2A @10W
ApprovalsUL, CE, ROHS Compliant
UPC / EAN Barcode icon
UPC 813280018494
EAN 0813280018494
