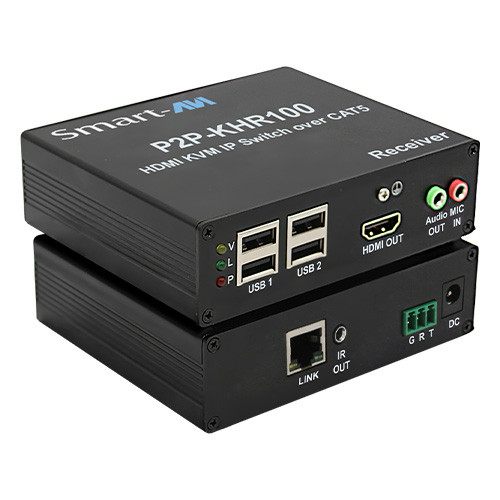

Point to Point Single-Head HDMI CAT5 Receiver with USB 2.0, Audio, and RS232

P2P-KHR100

$699.00$524.25
Save $174.75
Function: Receiver
FREE Shipping on orders over $100

About SmartAVI P2P-KHR100

Point to Point Single-Head HDMI CAT5 Receiver with USB 2.0, Audio, and RS232

SmartAVI P2P-KHR100 Diagram

P2P-KHR100 Features

  • Delivers DVI video resolutions up to 4K at 30Hz or Full HD 1080p at 60Hz
  • Provides seamless USB 2.0 extension for keyboards, mice, and other USB devices
  • Supports transparent pass-through for analog audio and RS-232 serial communication
  • Configure operating modes including Direct, Matrix, and SaviGate through an intuitive web-based interface
  • Compatible with the SaviGate Gateway platform for centralized system administration (available separately)
  • Extends signals up to 100 meters over CATx cabling or up to 10 kilometers via fiber optic connections
  • Utilizes advanced JPEG2000 compression technology for exceptionally low-latency performance
  • Simple plug-and-play deployment minimizes installation time and complexity
  • Features EDID learning and management for optimal display compatibility and performance

P2P-KHR100 Applications

  • Control Room Environments
    • Flexible KVM solutions designed for continuous operations, supporting everything from dedicated point-to-point connections to large-scale 256×32 matrix deployments.
  • Broadcast & Production Facilities
    • Enterprise-grade IP KVM technology engineered for live broadcasting, studio environments, and post-production workflows with seamless scalability for up to 256 connected systems.
  • Healthcare & Medical Applications
    • Reliable, low-latency KVM access for diagnostic imaging, clinical operations, and healthcare environments, ranging from individual workspaces to extensive matrix configurations.
  • Defense & Critical Operations
    • Robust KVM infrastructure built to support secure, mission-critical applications, delivering dependable performance and scalability in demanding operational environments.

SmartAVI P2P-KHR100 Back Ports


Data Sheet

Overview

Expand remote access capabilities for HDMI workstations with the P2P-KHR100. Designed to support Direct, Matrix, and SaviGate operating modes, this versatile KVM over IP solution scales effortlessly from straightforward point-to-point deployments to advanced multi-user, centrally managed environments using standard CATx infrastructure.

SmartAVI P2P-KHR100 Technical Specifications

Video Out
Format HDMI 1.4 & HDCP 1.4 Compliant, Video Bandwidth Up To 10.2 Gbps
Video Resolution Up To 2560 × 1600 @ 60 Hz
Connector 1×HDMI (19-Pin Female)
System
Interface EDID Storage [&] Emulation
Transmission Distance Up To 100 m; LC Connector Fiber Multimode: Up to 500 m; Fiber Single Mode: Up to 10 km
Compression Ultra-Low Latency JPEG2000
Management Selectable Direct, Matrix, SaviGate Gateway support for centralized management (SOLD SEPARATELY)
Audio
Format PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch
In/Output Interface 3.5 mm Stereo Aux Socket (Female)
USB
Out USB Type B, USB 2.0, USB 1.1, USB 1.0 compatible
KM Keyboard [&] Mouse Emulation
Other
Power 12 V DC, 3 A (Power Supply Included)
Reliability (MTBF) 135,540 Hours (MIL-HDBK-217F (N2) Parts Count Prediction Calculator)
Environmental Operating Temperature 0 C to 45 C (32 F to 113 F)
Environmental Operating Humidity 10 % to 90 %, non-condensing
ESD Protection Protection per IEC 61000-4-2 Standard at ±30 kV Air and ±30 kV Contact
Support Warranty 1-Year
Certification CE, FCC, RCM, UL
Dimensions 9.5″W x 5.25 D x 1.70 H
Weight 1.41lbs and 0.63kg
