Point to Point Dual-Head DVI CAT5 & Fiber Transmitter with USB 2.0, Audio, and RS233

P2P-KVT302

$1,499.00$1,122.85
Save $376.15
Function: Transmitter
FREE Shipping on orders over $100

About SmartAVI P2P-KVT302

Point-to-Point Dual-Head DVI-D CAT5 [&] Fiber Transmitter with USB 2.0 and Audio

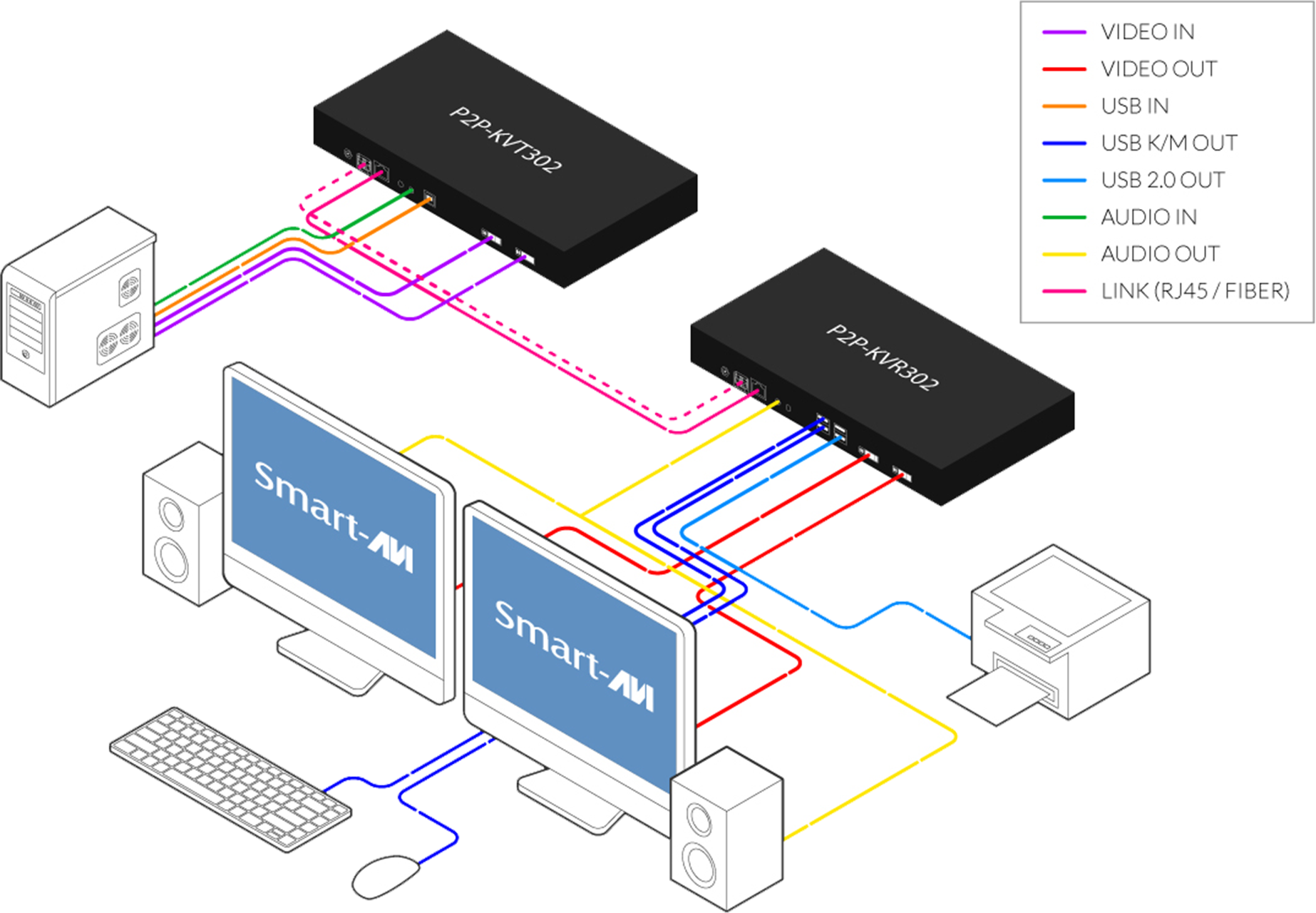

SmartAVI P2P-KVT302 Diagram

P2P-KVT302 Features

  • Supports DVI video up to 4K @ 30HZ or 1080P @ 60HZ
  • Transparent USB 2.0 extension for peripherals
  • Analog Audio
  • Selectable Direct, Matrix, and SaviGate modes via web interface
  • SaviGate Gateway support for centralized management (SOLD SEPARATELY)
  • Up to 100M over CATX / 10KM over Fiber
  • Ultra-low Latency JPEG2000 Compression
  • Plug-and-Play Installation
  • EDID Learning and Management

P2P-KVT302 Applications

  • Control Rooms
    • Scalable, real-time KVM control for 24/7 operations-from point-to-point to 256×32 matrixed systems.
  • Broadcast [&] Production
    • High-performance IP-based KVM for live production, studios, and post scaling seamlessly to 256 servers.
  • Medical [&] Healthcare
    • Low-latency, reliable KVM control for clinical and imaging workflows, from single rooms to large matrices.
  • Defense [&] Mission-Critical
    • Mission-ready KVM architecture delivering scalable, high-performance control for secure and critical environments

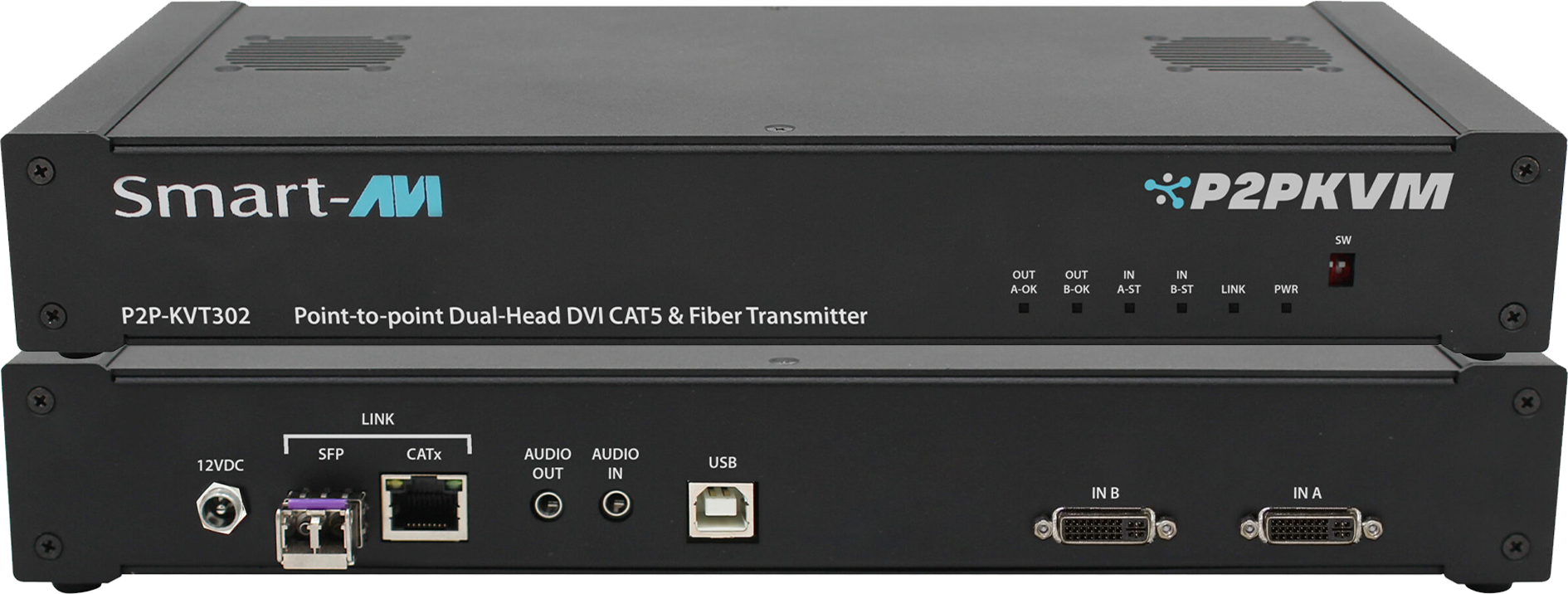

SmartAVI P2P-KVT302 Back Ports


Data Sheet

Overview

P2PKVR Series High-Performance KVM-over-IP Extender & Matrix Solution. Designed for mission critical environments, it delivers ultra-low latency, dual DVI video, and secure connectivity over CAT5 and Fiber networks, ensuring efficient system control and flexibility.

SmartAVI P2P-KVT302 Technical Specifications

Video Out
Format DVI-D Dual-Link Compliant, Video Bandwidth Up To 9.9 Gbps
Video Resolution Up To 2560 × 1600 @ 60 Hz
Connector 2× DVI-D Dual-Link (25-Pin Female)
System
Input Interface EDID Storage [&] Emulation
Transmission Distance Up To 100 m; LC Connector Fiber Multimode: Up to 500 m; Fiber Single Mode: Up to 10 km
Compression Ultra-Low Latency JPEG2000
Management Selectable Direct, Matrix, SaviGate Gateway support for centralized management (SOLD SEPARATELY)
Audio
Format PCM 2.0/2.1/5.1/7.1, Dolby Digital 5.1 ch, Dolby Digital Plus, Dolby TrueHD, DTS 5.1 ch
In/Output Interface 3.5 mm Stereo Aux Socket (Female)
USB
Out USB Type B, USB 2.0, USB 1.1, USB 1.0 compatible
KM Keyboard [&] Mouse Emulation
Other
Power 12 V DC, 3 A (Power Supply Included)
Reliability (MTBF) 135,540 Hours (MIL-HDBK-217F (N2) Parts Count Prediction Calculator)
Environmental Operating Temperature 0 C to 45 C (32 F to 113 F)
Environmental Operating Humidity 10 % to 90 %, non-condensing
ESD Protection Protection per IEC 61000-4-2 Standard at ±30 kV Air and ±30 kV Contact
Support Warranty 1-Year
Certification CE, FCC, RCM, UL
Dimensions 9.5″W x 5.25 D x 1.70 H
Weight 1.41lbs and 0.63kg
