Raritan PC-Share KVM Splitter



Recommended replacement: Adder AVP4
Alternative options: Contact Us

PC-Share is designed to provide a simple, cost-effective means to allow several users to share PC resources. With Raritan PC-Share, more than one user station, each with a keyboard, VGA monitor and PS/2 mouse, can alternately access and operate one PC from their location.

Multiple Stations for One PC:

  • Access one PC, either PS/2 or AT, from multiple locations

  • Share PC application data and peripherals

  • Maximize PC utilization, save steps, increase productivity

  • Secure PC in clean, safe place

  • Extend stations with coaxial or Category 5 UTP cable

Convenient Access
Up to five user stations can be connected for convenient access to the PC from wherever you need to be. User adjustable time-out and private view functions make operation simple and secure.

Two to five user stations can share access to one PC, either PS/2 or AT. All users can take control of the PC on first-come first-served basis. Only one user station (keyboard and/or mouse) is "active" at any one time. That active user station has exclusive control of the PC until the user is idle exceeding time-out limit. All attached monitors display that PC's video output unless the active user invokes the "Private View" function. The user can adjust time-out limit from 2 to 99 seconds.

A 2-foot cable, CCP06U, is provided to connect PC-Share to the PC's keyboard, VGA video, and mouse ports. Optional extension cables up to 30 feet are available.

For user station 1, plug the peripherals directly into the PC-Share. For user stations 2 and 3, use coaxial extension cables (CCPnnF) in lengths of 2, 5, 6, 13, 20, and 30 feet. For user stations 4 and 5, use standard Category 5 UTP cables up to 1,000 feet. The single PC can then be accessed and operated from any of the user stations.

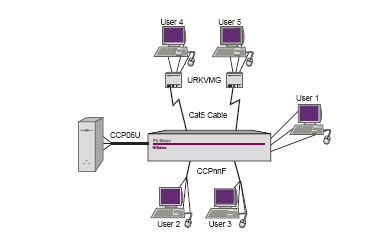

Raritan PC Share Diagram








Raritan PC SHARE Installation and Operation
