RALOY 19" Rackmount LCD with Sun Serial Keyboard

RA19-sun-serial

$2,590.00

Discontinued
Recommended replacement: Raloy RWX119
Alternative options: Contact Us

1U 19" Rackmount LCD Monitor (RA19-sun-serial)

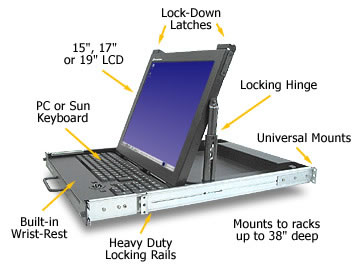

The Raloy 15", 17" and 19" Rack Mount LCD Monitor Drawers are 1U high (1.75") pull out trays equipped with a high resolution, wide viewing angle 15", 17" or 19" LCD. The unit is designed to fit in a standard 19" rack and to be slid out for use. Using a Rackmount LCD (RA19-sun-serial) in your rack allows you to have more space and use your rack more efficiently - save space...save money.

Unix, PC, and Sun Solaris Compatible

1U 17" Rackmount LCD Monitor (RA19-sun-serial) Features and Benefits:

  • 19" TFT LCD

  • 250 nits

  • 500:1 contrast ratio

  • 1280 x 1024 resolution at 70Hz

  • 25ms seek time

  • 11.41" x 15.21 viewing dimensions

  • 80-degree viewing from all four directions

  • Uses only 40watts

  • HD-15 video connector

  • Sun compatible 8-pin Serial keyboard with trackball

  • Fits most 19" racks from 24" to 38" deep

  • 24v, 48v and 400Hz power supplies offered (optional)

  • Built to Mil Spec 901 - 410 - 461 - 810

  • Solaris Ready Certified

RALOY 19in Rackmount LCD with Sun Serial Keyboard (RA19-sun-serial)
1U 19" Rackmount LCD Monitor (RA19-sun-serial)

Raloy 1U 19" Rackmount LCD Monitor Sun Microsystems (RA19-sun-serial) Features

  • Test by Sun Microsystems-UK

  • Fits all current Sun racks

  • Sun-compatible keyboard
    w/ Trackball - Optional

  • Will synch most Sun resolutions
    including 1152x900@66 or 76Hz!

1U 19" Rackmount LCD Monitor (RA19-sun-serial) Specifications:

Display
Display Resolution: 1024 pixels(H) x 768 lines(V)
Active Display Area: 304.1mm(H) x 228.1mm(V)
Displayable Color: 16.7M colors
Horizontal Scan: 31.5kHz to 80kHz
Vertical Refresh: 56Hz to 75Hz
Pixel Frequency: 135MHz
Supported Hardware
Compatibility: IBM & VESA VGA 640 x 350, 70Hz
640 x 400, 70Hz
720 x 400, 70Hz
640 x 480, 60Hz
VESA VGA 640 x 480, 60 / 72 / 75Hz
VESA SVGA 800 x 600, 56 / 60 / 72 / 75Hz
VESA XGA 1024 x 768, 60 / 70 / 75Hz
VESA SXGA 1280 x 1024, 60 / 75Hz
Apple Macintosh 640 x 480, 67Hz
832 x 624, 75Hz
1024 x 768, 75Hz
SunMicro 1152 x 900, 66 / 76Hz
Input Signal: . Video: analog RGB 0.7 Vp-p
. Sync: separate sync, composite sync, sync. on green
Auto-adjustment: Yes
VESA Mounting Interface: VESA Standard 100mm x 100mm
I/O Connectors: . DC power in
. VGA in D-sub 15 pin
User Controls: . Multilingual on screen menu adjustments
. External adjustment button
. External brightness adjustment
. Screen image control items: Auto-Adjustment, Contrast, Horizontal Position, Vertical Position, Frequency, Tracking, Display Mode, OSD Off-Time, Language, Text-Graphic, Reset, Volume, Mute, Color setting, Color adjustment (R.G.B)
Power
Power Saving: VESA DPMS standard (4 mode)
Power Consumption: 40 watt (max.), < 5 watt (off mode)
Standards
LCD Agency approval: FCC-B, CE-B, VCCI-II, BSMI, CCIB, UL, CUL, TUV, CB, TCO' 99
Environmental
Operating Temperature: . 0°~40°C / 32°~104°F
. Humidity: 80% maximum
Storage Temperature: . -20°~60°C / -4°~140°F
. Humidity: 95% maximum
