4K HDMI/DisplayPort USB KVM Drawer

RACKMUX-4K17-N

$2,360.00$2,221.18
Save $138.82
KVM Switch Ports: 1-Port
FREE Shipping on orders over $100

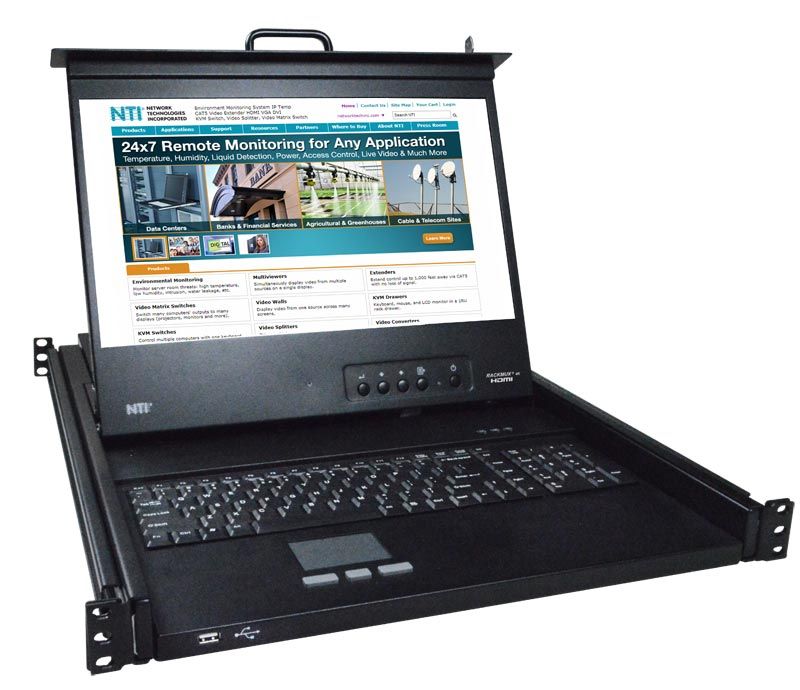

The RACKMUX-4K17-N is a 4K HDMI/DisplayPort USB KVM Drawer combines a rackmount 4Kx2K LCD monitor, keyboard, and touchpad mouse in a space-saving 1RU industrial-strength drawer.

  • Forward-folding 17.3" TFT/LCD monitor.
  • Supports resolutions up to Ultra-HD 4Kx2K (3840x2160 @24/30/60Hz RGB/YUV 4:4:4).
  • HDMI 2.0, DisplayPort 1.2a, HDCP 2.2/1.4 compliant.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Three-button touchpad mouse supports single-finger gestures.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack
  • Designed to be a one-person job when installing the drawer.
  • Front panel security lock.
  • Front panel USB port to connect an external USB device, such as a flash drive.
    • Supports audio pass-through - connect USB speakers or headphones to the front-panel USB port to play the audio.
  • Cable management tray included.
  • Available with optional mounting bracket for two-post style telco rack. (RL-T15-TEL)

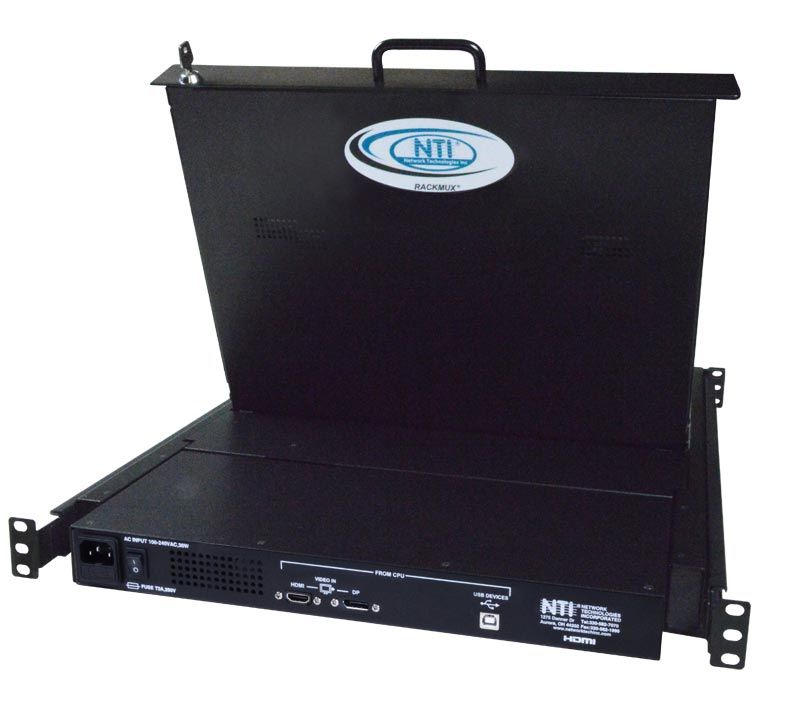

NTI RACKMUX-4K17-N-8HD4K Back Rear View
Rear of the RACKMUX-4K17-N Rackmount drawer

RACKMUX-4K17-N Package Contents

NTI RACKMUX-4K17-N-8HD4K Package Contents

  • (1) NTI RACKMUX-4K17 KVM Drawer
  • (1) 1U 19" Rack Mount Kit - Single-Person Installation
  • (1) US Power Cord
  • (2) Keys for Lock
  • (1) USB2-AB-2M-5T 2 meter USB Type A male-to-USB Type B male cable
  • (1) HD-6-MM 6 foot HDMI video cable
  • (1) DP-6-MM 6 foot DisplayPort video cable
  • (1) URL slip with link to PDF file of the manual
  • (1) 2-Year Standard Warranty

RACKMUX-4K17-N Resources

NTI RACKMUX-4K17-N-8HD18GB Manual NTI RACKMUX-4K17-N Brochure (PDF)
NTI RACKMUX-4K17-N Manual (PDF)

NTI RACKMUX-4K17-N Specifications

Dimensions (H x W x D)
  • 1.75 x 19 x 23.9 in. (44x483x607 mm)
Monitor
  • Resolution: up to 3840x2160@60Hz 4:4:4
  • Forward-folding 17.3" Active Matrix LCD flat panel display.
  • Tilt: up to 120°
  • Frequency: up to 60Hz
  • Brightness: 400 nits
  • Contrast Ratio: 1000:1
  • Compliant with HDMI 2.0, DisplayPort 1.2a, and HDCP 2.2/1.4 standards.
Devices
  • Keyboard available in: English (US).
    • 100-key (US) with numeric keypad
  • Three button touchpad mouse.
    • Supports single-finger gestures.
  • Front panel USB 2.0 port to connect external USB devices.
    • Female USB Type A connector.
    • KVM drawer must be connected to a USB-enabled computer.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power Consumption: 30 W
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Regulatory Approval
  • CE, RoHS
  • TAA compliant
Warranty2-Years
