NTI Rackmount Terminal Drawer w/ 16 Port Console Switch



Recommended replacement: Raloy RWX119
Alternative options: Contact Us

The NTI RACKMUX-T15-RS16 is a rack mount terminal drawer with a 16 port console switch which can control up to 16 RS232 serial devices from 1U of rack space.  The RACKMUX-T15-RS16 is a combination of the NTI RACKMUX-T15 terminal drawer and the NTI SE-RS-16 console switch.

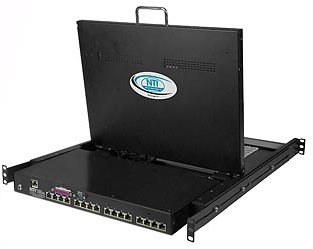

NTI RACKMUX-T15-RS16 Backside
NTI RACKMUX-T15-RS16 Backside

NTI RACKMUX-T15-RS16 Features:

  • Entire unit is only 1 RU (1.75") high.
  • Manage up to 16 serial devices, including servers, switches, routers, and telecom gear through a single interface.
  • Supports RSC capabilities.
  • Serial and parallel slave-printer ports.
  • Front panel security lock.
  • Emulates many terminal types.
  • Select from 16 foreground and 16 background colors.
  • Available with optional anti-glare protective glass for the LCD.
  • Available with optional mounting bracket for two-post style telco rack.

NTI Terminal Drawer Details:

  • Compatible with any SUN, HP or PC-based headless server.
  • Communicates with serial devices, such as routers, bridges, firewalls and hubs.
  • Active Matrix TFT color 15" LCD flat panel monitor.
  • Display resolution: 1024x768.
  • Viewing angle:  Horizontal: 140° , Vertical: 125°
  • Video auto-adjust for optimum image.
  • OSD controls for brightness and contrast.
  • 250 nits brightness and 500:1 contrast ratio typical.
  • Keyboard available in multiple languages: English (US), English (UK), French, German, Italian, Spanish.
  • 83-key (US) or 84-key (Europe) keyboard with wrist-pad.
  • Serial port: One DB9M RS232 port.
  • Serial baud rates: 50 to 115,200bps.
  • Data format: 7 or 8 data bits with or without parity, 1 or 2 stop bits.
  • Serial handshake: XON/XOFF, XPC, and hardware DTR.
  • Communication options: Single RS232 server connection, or up to 12 Ethernet telnet sessions to predefined IP addresses.
  • Network port: One RJ45 10BaseT Ethernet port.
  • Local printer ports: One DB25F Parallel and one DB9M RS232 port.

NTI Console Switch Details:

  • Serial device connection: male RJ45 connectors to serial controlled device.
  • Control console connection: male RJ45 connector to dumb terminal.
  • RJ45 connectors, DTE configuration via RS232.
  • RS232 ports, plus one console port.
  • Flow control: Hardware (RTS/CTS), Software (XON, XOFF), both or none.
  • Data transfer rate: 50 baud to 128K baud.
  • Effective transfer rate > 10K baud.
  • Included Adapters:
    • DB-25F to RJ45 console adapter.
    • DB-9F to RJ45 console adapter.
    • DB-25M to RJ45 console adapter.
    • DB-25M to RJ45 modem adapter.

NTI RACKMUX-T15-RS16 Specifications:

Mechanical Terminal Drawer Console Switch
Height 1.75 in. (4.44 cm.) 1.75 in. (4.44 cm.)
Width 19 in. (48.26 cm) 19 in. (48.26 cm)
Depth 21.9 in. (55.62 cm.) 10 in. (25.4 cm.)
Weight 26 lbs. (18 kg.)
Rack Spaces 1U 1U
Operating Temperature 32°F to 104°F (0°C to 40°C) 32°F - 100°F (0°C - 38°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C) -20°F - 140°F (-30°C - 60°C)
Relative Humidity 20 to 90% non-condensing RH 17 - 90% non-condensing RH
Operating Voltage 110 or 220 VAC at 50 or 60Hz via IEC adapter AC 100 - 240V, 50 - 60Hz , 5W
