2-Port DVI-D, USB 1.1, Integrated CAT6 STP Switch, Switcher/Extender, Receiver

RDU-2P-RXS

$450.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

SmartAVI's RDU-2P is a perfect solution for sharing the output of two computers from a remote location. It extends DVI-D and USB 1.1 from two computers to a remote location up to 275 feet away. Both the transmitter and receiver have an integrated remote switch, allowing you to switch between the two computers locally or from the remote location. With its DDC learning capabilty, the RDU-2P is fully plug-and-play.
*Receiver only.

Applications

  • Medical Applications
  • Industrial Work Areas
  • Home Theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios

Features

  • DDC learning from display
  • Switches inputs locally and from the remote unit
  • Supports Mac, PC, and Linux DVI
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Supports all USB 1.1 Devices Transparently
  • (Flash Drives, Printers, Cameras, Scanners, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Front panel tactile port switch on both the transmitter and receive

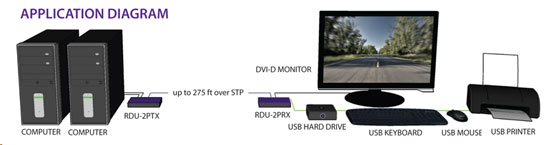

diagram

SmartAVI RDU-2P Receiver Specifications

Mechanical
Height 1 in. (2.54 cm)
Width 9 in. (22.86 cm.)
Depth3 in. (7.62 cm.)
FormatDVI-D Single Line
Maxiumim Pixel Clock165 MHz
Input Interface(2) DVI-D 29 pin femalw
Ouput Interface(1) DVI-D 29 pin female
ResolutionUp to 1920x1200 @ 60Hz
DDC5 volts p-p (TTL)
USB Input Interface (TX)(2) USB Type B (female)
USB Output Interface (RX)(4) USB Type A (female)
PowerExternal 100-240 VAC/5VDC4A @20W
UPC / EAN Barcode icon
UPC 813280018616
EAN 0813280018616
