1U Rackmount Keyboard Drawer with integrated 2-console 8-port PS/2 KVM Switch

RK-802

$851.00
FREE Shipping on orders over $100

Cyberview RK-802 Series is a combination of keyboard, (with KVM switch) into a drawer, with features such as adjustable brackets, selective touchpad or trackball to provide effective assistant for an administrator to control multiple PCs.

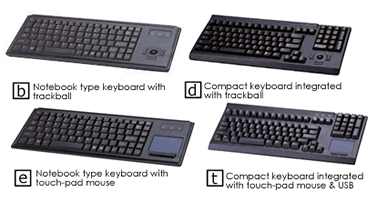

The following keyboard options are available for the RK-802:




  • 1U, standard 19" rackmount keyboard drawer
  • Lightweight construction
  • Lockable drawer to secure the keyboard & mouse
  • Multiple keyboard language selections with either touchpad or trackball
  • Adjustable mounting brackets from 390 to 795 mm
  • Slide rails have fixed position to prevent movement of the keyboard
  • All mounting hardware included
  • (8) 6' KVM cables included
  • Cascade for use up to 128 servers.
  • Name servers up to 16 characters long.
  • Scan mode - Monitor servers at intervals 5 to 99 seconds.
  • High Video Quality - Up To 1920x1440, Bandwidth: 200MHz
  • Built-in microprocessor emulation for each port boots up process.
  • Support eight characters password protection and search PC server name.
  • VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
  • Multi-platform - mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell.
  • Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys.

Local console Cat5 Console
PC port 8/16 N/A
Console Port - -
PC Selection OSD menue, hot key, push button OSD menue, hot key, push button
LED 1 Bank LED, 8/16 Online LED (Green), 8/16 Selected LED (Red) 1 Power LED (Green) and 1 Status LED (Red)
On screen display control Yes Yes
Scan Intervals 5~99sec 5~99sec
Keyboard and mouse emulation PS/2 PS/2
VGA Resolution (Max.) 1920x1440 1600x1200
Cat5 Length N/A 500ft
Bandwidth 200Mhz 150Mhz
Cascasde Level 8 levels 8 levels
PC Connection 120/128 120/128
Housing Metal Metal
KVM Switch Power Adapter DC 12V DC 9V
