Rackmount with Eight 1x4 Splitter Cards (32 DVI Out Signals) CAT6 STP Splitter

RK-DVS4P-8S

$4,689.00$3,653.77
Save $1,035.23
FREE Shipping on orders over $100
smartavi_madeinusa

The RK-DVS4P-8S is a high-resolution video splitter system designed to broadcast high-definition DVI-I signals up to 25 feet. It has 8 expansion bays, each of which splits one DVI-I signal in to four. This solution simplies having muliple DVD-I splitters with multiple power supplies.

Applications

  • Test Bench Facilities
  • Data Center
  • Presentations
  • Help desk
  • Server Rooms
  • Industrial Floor

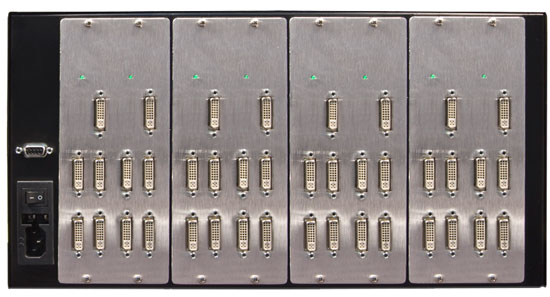

product

Features

  • Supports DVI-D single-link
  • Supports Mac, PC, and Linux DVI
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Distance: 275 feet with two CAT6 STP cables
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • DDC from internal table for Mac/PC
  • Supports all USB 1.1 Devices Transparently
  • (Flash Drives, Printers, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Compatible with all operating systems
  • Compatible with all major KVM switches
  • Rack Mountable Solution
  • Data recovery for digital video
  • Supports 1.5 and 12Mbps data rates
  • Plug-and-play

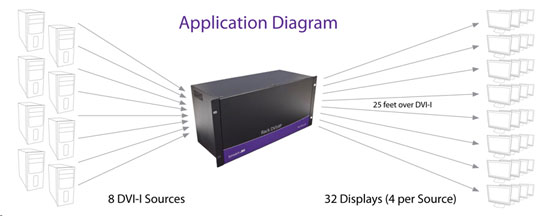

diagram

SmartAVI RK-DVS4P-8S

Mechanical
Height 8.75 in. (22.22cm)
Width 17 in. (43.18 cm.)
Depth7.5 in. (19.05 cm.)
Input InterfaceDVI-I (singlelink) female connector
Output InterfaceDVI-I (singlelink) 4x female connector
Resolution1920x1200 @ 60H, Resolution up to 1280x1024 min 75H
Power SupplyInternal Universal Switchmode PSU (90-240V Input) 5VDC
UpgradableDDC Onboard Flash learning
UPC / EAN Barcode icon
UPC 813280022859
EAN 0813280022859
