SmartAVI RK-DVX-PLUS-RX8S Receiver

RK-DVX-PLUS-RX8S

$2,799.00$2,181.04
Save $617.96
FREE Shipping on orders over $100
smartavi_madeinusa

The RK-DVX-Plus is the perfect solution for extending DVI-D and USB 1.1 signals to a remote location up to 275 feet away. It is the ideal way to consolidate 8 workstation computers into one location. The RK-DVX-Plus features dual DVI-D extension up to 275 feet over STP. It is fully compatible with MAC, PC and LINUX DVI standards.

The RK-DVX-Plus also features transparent USB 1.1 signal extension, with full support for all USB 1.1 devices and an integrated 4-port hub in the receiver. Flas Drives, Printers, Cameras, Scanners, etc. may all be used with the RK-DVX-Plus.

*Receiver only, 8 card package

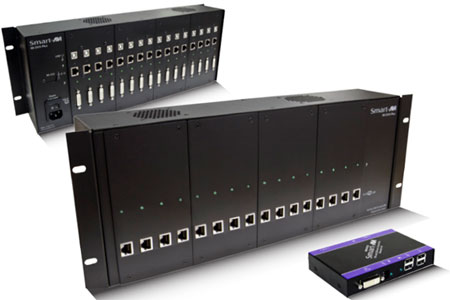

product

Applications

  • Medical Applications
  • Industrial Work Areas
  • Home Theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios

Features

  • Supports DVI-D single-link
  • Supports Mac, PC, and Linux DVI
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Distance: 275 feet with two CAT6 STP cables
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • DDC from internal table for Mac/PC
  • Supports all USB 1.1 Devices Transparently
  • (Flash Drives, Printers, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Compatible with all operating systems
  • Compatible with all major KVM switches
  • Rack Mountable Solution
  • Data recovery for digital video
  • Supports 1.5 and 12Mbps data rates
  • Plug-and-play

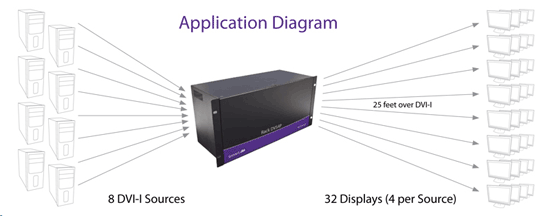

  • diagram

    UPC / EAN Barcode icon
    UPC 813280022965
    EAN 0813280022965
