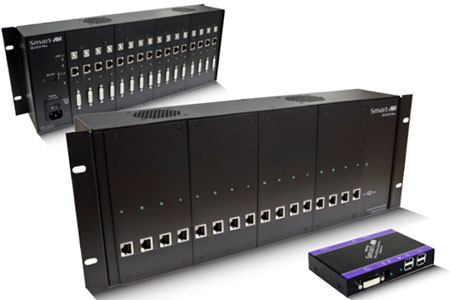

SmartAVI RK-DVX-PLUS-TX16S Transmitter


Save $1,081.60
FREE Shipping on orders over $100

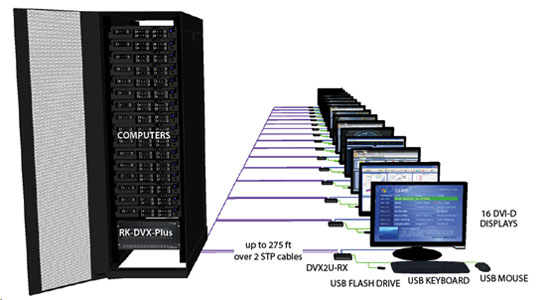

The RK-DVX-Plus is the perfect solution for extending DVI-D and USB 1.1 signals to a remote location up to 275 feet away. It is the ideal way to consolidate 16 workstation computers into one location. The RK-DVX-Plus features dual DVI-D extension up to 275 feet over STP. It is fully compatible with MAC, PC and LINUX DVI standards.

The RK-DVX-Plus also features transparent USB 1.1 signal extension, with full support for all USB 1.1 devices and an integrated 4-port hub in the receiver. Flas Drives, Printers, Cameras, Scanners, etc. may all be used with the RK-DVX-Plus.

*Transmitter only, 16 card package



  • Medical Applications
  • Industrial Work Areas
  • Home Theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios


  • Supports DVI-D single-link
  • Supports Mac, PC, and Linux DVI
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Distance: 275 feet with two CAT6 STP cables
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • DDC from internal table for Mac/PC
  • Supports all USB 1.1 Devices Transparently
  • (Flash Drives, Printers, etc.)
  • Supports USB 1.1 keyboard and mouse
  • Compatible with all operating systems
  • Compatible with all major KVM switches
  • Rack Mountable Solution
  • Data recovery for digital video
  • Supports 1.5 and 12Mbps data rates
  • Plug-and-play


SmartAVI RK-DVX-PLUS-TX16S Specifications

Height 17 in. (43.18 cm)
Width 7 in. (17.78 cm.)
Depth 3.5 in. (8.89 cm.)
Weight10 lbs.
Input InterfaceDVI-I (SingleLink) Female connector
Output InterfaceDVI-I (SingleLink)4xDemale connector
Resolution1920x1200 @60H, Resolution up to 1280x1024 min 75H
Power SupplyInternal Universal Switchmode PSU (90-240V Input) 5VDC
UpgradableDDC Onboard Flash learning
UPC / EAN Barcode icon
UPC 813280022972
EAN 0813280022972
