Powered Rack/Chassis with 16 USB 2.0 CAT5 Transmitters

RK-USB2-16S

$6,899.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

The RK-USB2Pro extends sixteen USB 2.0 input devices to sixteen USB2Pro receivers. It supports all USB 2.0 high-speed devices, from keyboards to digital cameras and will operate on Windows¨, Mac and Linux¨ operating systems.

The USB2Pro receivers have an integrated four-port hub that allows for multiple devices to be connected at once. This means the RK-USB2Pro can extend sixteen USB 2.0 inputs to 64 outputs. Additional USB hubs can be added, increasing the amount of devices that can be plugged into the USB2Pro.

Applications

  • KVM Extension
  • Digital Signage
  • Home Networking
  • Remote USB Connections
  • USB Device Sharing
  • Webcam
  • USB Electronics Devices
  • Security Systems

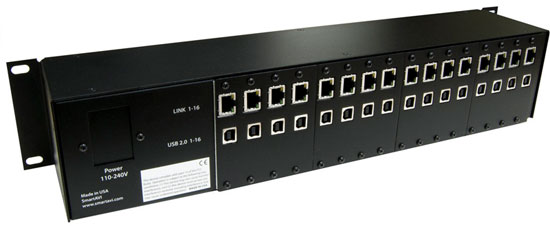

product

Features

  • Supports USB 2.0 and 1.1 Devices
  • Works on Windows¨, Mac and Linux¨ Operating Systems
  • Receiver has an Integrated Four-Port Hub
  • Rack Mountable (2U) with Internal Power Supply
  • Extends up to 325 feet
  • Plug-and-Play

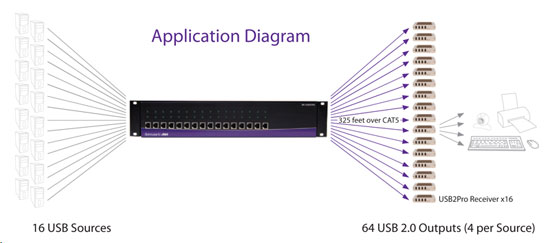

diagram

SmartAVI RK-USB2Pro Specifications

Mechanical
Height  3.37in. (8.55 cm)
Width 19 in. (48.26 cm.)
Depth5.25 in. (13.33 cm.)
Input InterfaceUSB-B 2.0 Female
Link Connector16 x RJ45
Power SupplyUniversal Switch Mode PSU (90-240V Input) 5VDC
UPC / EAN Barcode icon
UPC 813280023009
EAN 0813280023009
