2U 20" LCD Rackmount Monitor Keyboard Drawer w/ 8-Port USB KVM Switch



The RKP220-S801 is a 2U, 20" Rackmount LCD monitor with 8 port USB KVM Switch.  This Rackmount LCD features a flip-up design, adjustable brackets and a built in LCD OSD to provide effective assistance for an administrator to control PC system.

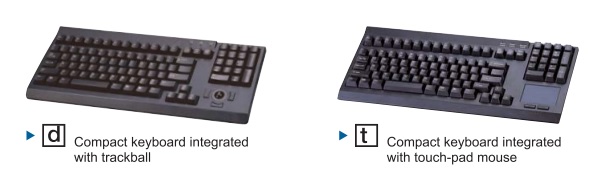

The keyboard options for the RKP220-S801 are (please choose an option from the drop down box above):

Rackmount LCD Keyboard Options

RKP220-S801 Features:

  • 2U 20" TFT LCD screen
  • Allow viewing through closed glass cabinet door
  • Two keyboard selections support multiple languages
  • Adjustable mounting brackets from 390 to 845 mm
  • Slide rails have fixed position to prevent movement of the keyboard & screen
  • (8) CB-6 KVM cables are included.
  • All mounting hardware included

Integrated USB KVM Switch Features:

  • Name servers up to 16 characters long.
  • Scan mode - Monitor servers at intervals 5 to 99 seconds.
  • High Video Quality - Up To 1920x1440, Bandwidth: 200MHz
  • Built-in microprocessor emulation for each port boots up process.
  • Support eight characters password protection and search PC server name.
  • VGA, keyboard & mouse all-in-one by 15pin HDDB connector at switch side.
  • Multi-platform - mix PCs, SUN Microsystems, IBM compatibles, HPs, Compaq and Dell.
  • Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.
  • No Software Required - easy PC selection via On Screen Display Manual, Push Buttons, Hot Keys

RKP220-S801 Rackmount LCD Specifications:

Height 3.5 in. (8.8 cm.)
Width 17.4 in. (44.2 cm.)
Depth25.9 in. (65 cm.)
Weight44 lbs. (20 kg.)
Packaged Dimensions
8.7 x 23.6 x 30.3 in.
(22 x 60 x 77 cm.)
Packaged Weight53 lbs. (24 kg.)
Operating Temperature 0 to 50 Degree Celsius
Storage Temperature-5 to 65 Degree Celsius
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration5~500Hz 1G RMS random vibration
Power110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 5A)
Form Factor2U rack mounting, separate slide-out screen & keyboard
Color Black
CompatibilityMulti-platform - Mix PC, SUN, IBM, HP & DELL
Server-side InterfaceHD15 VGA, USB Type A for KB/MS
Rack MountingAdjustable ranges from 15.3" to 33.2" (390 to 845mm)
LCD Screen
Display Size20" inch diagonal
LCD TypeSamsung grade A industrial TFT LCD Panel
Resolution1600 x 1200
Display color 16.7 M
Brightness300 cd/m2
Contrast Ratio800:1
Response TimeTR=1 / Tf=4 ms
Pixel Pitch0.255 (H) x 0.255 (V) mm
Viewing Angle80/ 80/ 80/ 80 (L/R/U/D)
OSD Control Brightness, Contrast, Phase & Clock, Color, H & V Position,
Auto-tune, Recall & Language
Signal InputVGA, Analog RGB
Option InputVideo (S-video & Composite), DVI-D
LCD MTBF50,000 hrs
Integrated KVM Switch
KVM Port8 port, HD15 female
Port AcessChannel button or hot keys selectable
IndicatorsOnline (green) and selected (red) status LED
Cascade ExpansionUp to 128 ports/servers
KB/MS EmulationUSB 1.1 Compliant, support hot-plugging
Server-side InterfaceVGA HD15, analog RGB, USB type A, support hot-plugging
Support Platform MS Windows MS Windows 2000/XP, Solaris and SCO Unix
KVM Cable "CB" series USB KVM cable with 6, 10, 15 feet option- (8) 6' cables included
Cascade Cable"CBC" series cascade cable to USB KVM switch
Rear I/O Connector8 KVM ports, HD15 female,  USB cascade port, HD15 female
Regulatory Approval
