SmartAVI 16-Port HDMI Video Extender Transmitter up to 150 feet over CAT5e/6

RKT16-HDX100S

$2,999.00$2,336.88
Save $662.12
FREE Shipping on orders over $100
smartavi_madeinusa

SmartAVI RKT16-HDX100S Contents:

  • 1 x RKT16-HDX100 16-port HDMI Transmitter
  • 1 x CCPWR06 Power Supply
  • NOTE: Requires at least one HDX-RX100S HDMI receiver unit (sold separately)

The SmartAVI RKT16-HDX100S is an excellent solution for extending HDMI signals to remote locations up to 150 feet away. Consolidate up to 16 workstation computers into one location, which means no more hassle and worrying about multiple devices. With the RKT16-HDX100S, up to 16 displays can be extended easily from a rack without the mess or expense of other solutions. Rather than buying multiple extenders for your rack component and needing to find power sources for them all, the SmartAVI HDMI extender is a simple yet powerful solution. It is fully compatible with MAC, PC and LINUX HDMI standards.

SmartAVI RKT16-HDX100S Applications:

  • Home Theater
  • Corporate/Educational Presentations
  • Call Centers
  • Industrial (Long-Range Workstation Isolation)
  • Information Terminals/Kiosks
  • Airport Installations (Air Traffic Control/Passenger Information)
  • Educational Environments with Remote Displays

product back

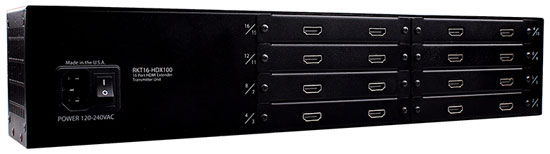

Back of the RKT16-HDX100S

SmartAVI RKT16-HDX100S Features & Benefits:

  • Supports up to 16 HDMI sources
  • Supports High Resolution 1920x1200 60Hz WUXGA
  • Extends up to 150 feet with CAT5e/CAT6 STP cables
  • Zero pixel loss with TMDS signal correction
  • DDC from internal table
  • Compatible with all operating systems
  • Local HDMI output for each port
  • HDMI 1.3 and HDCP compliance
  • Rack Mountable Solution
  • Data receovery for digital video
  • Plug-and-play ready
  • Uncompressed Video

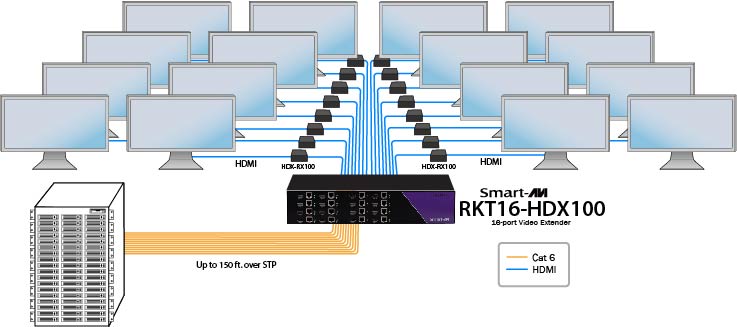

SmartAVI RKT16-HDX100S Application Diagram

SmartAVI RKT16-HDX100S Application Diagram

 SmartAVI RKT16-HDX100S Specifications:

Mechanical
Width17 in. (43.18 cm.)
Height3.5 in. (8.9 cm.)
Depth3.25 in. (8.3 cm.)
Weight10 lb. (4.54 kg.)
Video
Resolution1920x1200 @60Hz;
480p/720i/720p/1080i/1080p
Output Interface (RX)16 x HDMI female
Input Interface (TX)16 x HDMI female
Video InterfaceHDMI
ConnectorHDMI Connector
Maximum Pixel Clock165MHz
Power110-240 VAC
Environmental
Operating Temperature0-55°C (32-131°F)
Storage Temperature-20-85°C (-4-185°F)
HumidityUp to 95%

The RKT16-HDX100S was formerly known as the RKT16-HDX100-S

UPC / EAN Barcode icon
UPC 813280019088
EAN 0813280019088
