4K LED Rack Mount Monitor Drawer - 1U, 18.4"
RP-K119
Save $168.00
The CyberView RP-K119 is a 1U 18.4" 4K LED Display Drawer with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor drawer solution for your limited IT budget in a space saving, highly customizable package.
RP-K119 Features and Display Benefits
- 1U 18.4" 4K LCD display drawer
- 3840 x 2160@60Hz native resolution / 1.07B colors ( 10-bit )
- 1920 x 1080 & 1920 x 1200 resolution support
- Display port 1.2 video input
- Built-in dual stereo speakers
- Short depth design of 460mm
- One Man installation design
- Enhanced aesthetics with molded front panel and two point lock
- 2-year standard warranty ( upgradable up to 5 years )
- TAA Compliant
RP-K119 Options
- HDMI 2.0 video input
- 3G / HD / SD-SDI Broadcast-grade input
- DC power : 12V / 24V / 48V / 125V / 250V
- Touchscreen: 10-pt Projected Capacitive / 1-pt Resistive
For Multi-display control, DC power, SDI, and touchscreen options please call 1-877-586-6654.
RP-K119 Package Contents
- (1) RP-K119 Rack Monitor Drawer
- (1) 6ft DisplayPort cable
- (1) Power cord
- (8) M6 screw, cage nut & cup washer
- (1) 2-year standard warranty ( upgradable up to 5 years )
RP-K119 Resources
RP-K119 Brochure (PDF)
RP-K119 Manual (PDF)
Touch Screen Calibration Manual (PDF)
RP-K119 Specifications

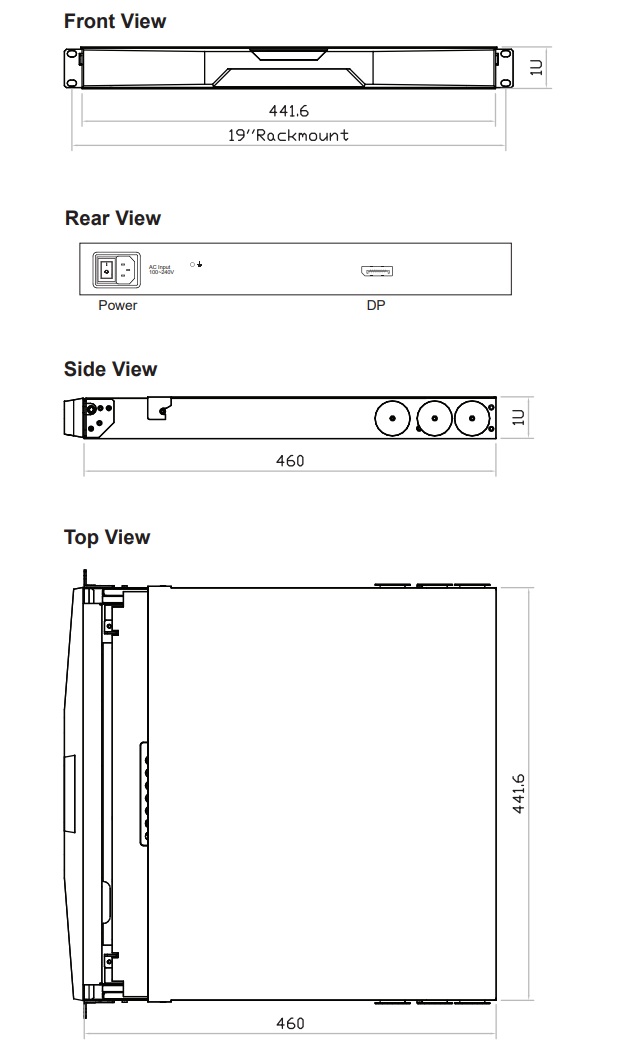

| Mechanical | |||||||
| Product Dimensions (H x W x D) | 1.73 x 17.4 x 18.1 in ( 44 x 442 x 460 mm ) | ||||||
| Package Dimensions (H x W x D) | 4.7 x 23.1 x 29.8 in ( 120 x 588 x 758 mm ) | ||||||
| Net Weight | 24.2 lb ( 11 kg ) | ||||||
| Gross Weight | 33 lb ( 15 kg ) | ||||||

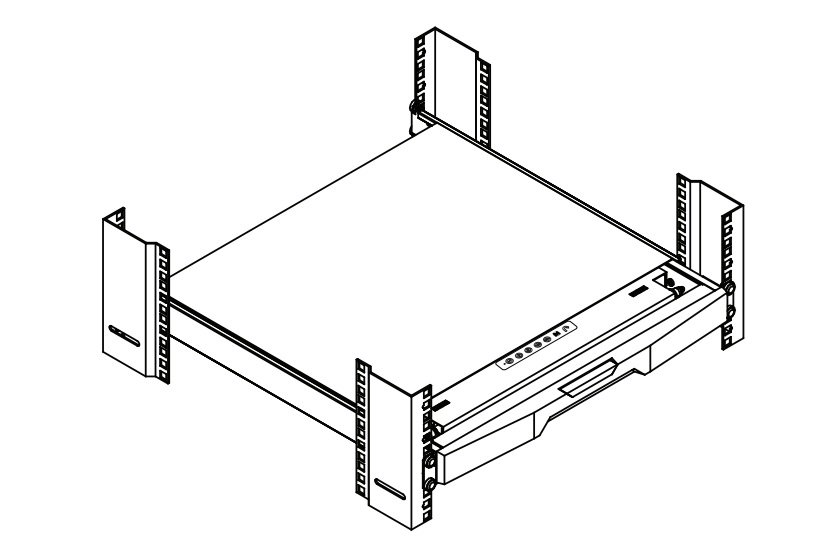

| Mounting | |||||||
| Rack Mounting | 1U | ||||||
| Mounting Depth | 19.3 to 28.3 inch (490 to 720 mm) | ||||||

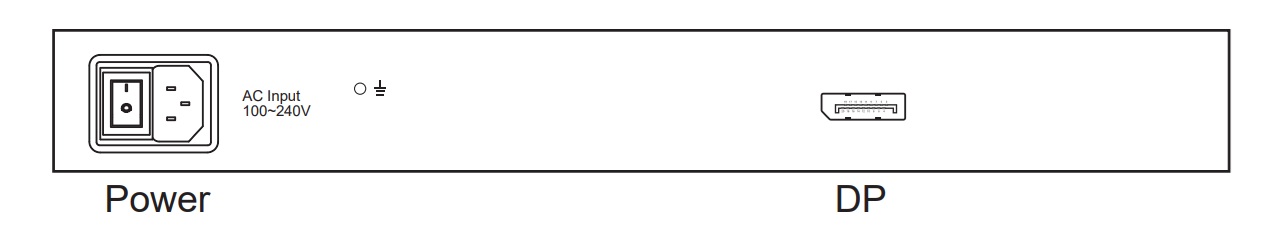

| Console Ports | |||||||
| Video Input | Display port 1.2 | ||||||
| Video Option | HDMI 2.0 / HDCP 2.2 | ||||||
| LCD Screen | |||||||
| LCD panel size ( diagonal ) | 18.4" | ||||||
| Backlight type | LED | ||||||
| Native resolution | 3840 x 2160@60Hz | ||||||
| Brightness (cd/m2) | 300 | ||||||
| Colors | 1.07B, 10-bit | ||||||
| Contrast Ratio (typ) | 1000 : 1 | ||||||
| Viewing angle ( L/R/U/D ) | 85/85/85/85 | ||||||
| Response time ( ms ) | 15 | ||||||
| Dot pitch ( mm ) | 0.065 | ||||||
| Display area ( mm ) | 408.96H x 230.04V | ||||||
| Surface treatment | Anti-glare | ||||||
| Surface hardness | 3H | ||||||
| MTBF (hrs) | 30,000 | ||||||
| Audio | |||||||
| Speaker | 2x 2W (Dual Stereo) | ||||||
| Audio Signal | 2ch Linear PCM | ||||||
| Power | |||||||
| Power Input | Auto-sensing 100 to 240VAC, 50 / 60Hz | ||||||
| Power Consumption |
| ||||||
| Environmental | |||||||
| Operating Temperature | 0 to 55°C Degree | ||||||
| Storage Temperature | -20 to 60°C Degree | ||||||
| Operating Humidity | 10~90%, non-condensing | ||||||
| Relative Humidity | 5~90%, non-condensing | ||||||
| Operating Altitude | 16,000 ft | ||||||
| Non-operating Altitude | 40,000 ft | ||||||
| Shock | 10G acceleration (11ms duration) | ||||||
| Vibration | 10~300Hz 0.5G RMS random vibration | ||||||
| Regulatory Compliance | |||||||
| EMC | FCC & CE certified | ||||||
| Safety | CE / LVD & UKCA | ||||||
| Environment | REACH & RoHS3 / WEEE |
