Smart-AVI Dual DVI-D HDBaseT USB Keyboard RS232 & Audio Extender
SDX-2PS
Using HDBaseT technology, the Smart-AVI SDX-2P Dual DVI extender is capable of sending dual DVI-D signals up to 400 feet over two conventional and inexpensive CAT5/5e/6 cables. HDBaseT technology is superior to older DVI extenders that require special CAT6 shielded cables to go a short distance.
The Smart-AVI SDX-2P also has USB keyboard, mouse, audio and RS232 extensions, giving you the ability to control your displays or devices remotely.
Smart-AVI SDX-2P Features and Benefits:
- Extends dual DVI-D up to 400 feet (120m) from the source
- HDCP Support
- Supports up to 1920x1200 digital video resolution
- Automatic DDC Learning
- USB Keyboard and Mouse extension
- Uncompressed Video HDBaseT
- RS232 extension allows for remote control of displays
- External power adapter for transmitter and receiver unit
- Supports Stereo Sound
- Compatible with Windows, Mac and Linux Operating Systems

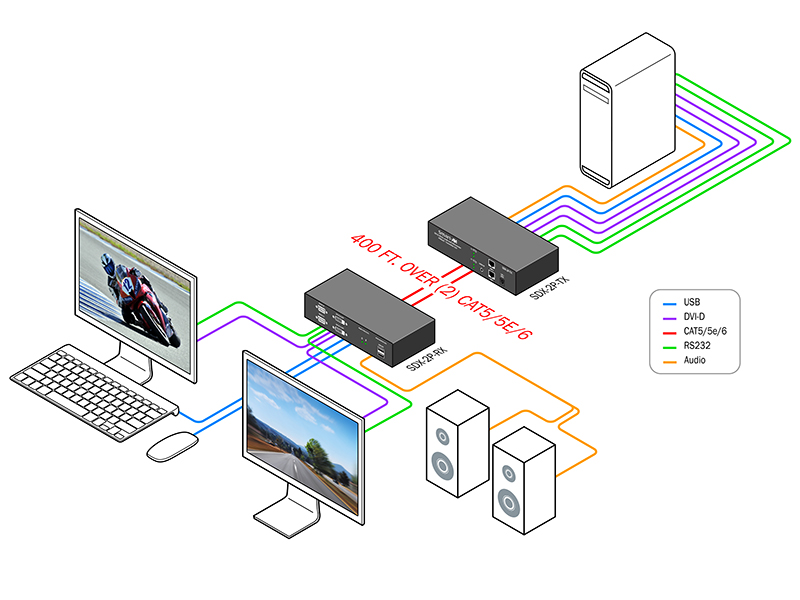

Smart-AVI Dual DVI-D USB Keyboard RS232 & Audio Extender Diagram
(SDX-2P-S depicted here)
Smart-AVI SDX-2P Applications
- Security
- PC Networking
- Conference Center Systems
- Point of Sale
- Camera Surveillance
- Video Phone
- Control Room Systems
- Recording Studio
- PC KVM Extension
Smart-AVI SDX-2P Specifications:
| Mechanical | |
| Width | 8.25 in. |
| Height | 1.75 in. |
| Depth | 3.375 in. |
| Weight | 4 lbs. |
| Environment | |
| Operating Temperature | 0-55°C (320131°F) |
| Storage Temperature | -20 - 85 °C (-4 - 185 °F) |
| Humidity | Up to 95% |
| Video | |
| Format | 2 x DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input Interface (TX) | 2 x DVI-D 29-pin |
| Output Interface (RX) | 2 x DVI-D 29-pin |
| Resolution | Up to 1920 x 1200 @ 60Hz |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| USB | |
| Signal Type | USB 1.1 |
| Input Interface (TX) | 1 x USB Type B |
| Output Interface (RX) | 2 x USB Type A |
| Audio | |
| Signal Type | Stereo Audio |
| Bandwidth | 15MHz, 0dB |
| Impedance | 100 Ohm |
| Connector | 3.5 mini Jack |
| RS232 | |
| Input Interface (TX) | DB9 |
| Output Interface (RX) | DB9 |
| Speed | @ 115 Kbps |
UPC 813280019194
EAN 0813280019194
