HDBaseT DVI-D , RS232, CAT5/5e/6 Transmitter

SDX-TXS

$399.00$310.91
Save $88.09
FREE Shipping on orders over $100
smartavi_madeinusa

Using HDBaseT technology, the SDX DVI extender is capable of sending a DVI-D signal up to 400 feet over a single conventional and inexpensive Cat5e/6 cable. HDBaseT technology is superior to older DVI extenders that require special Cat6 shielded cable to go a short distance. The SDX also has RS-232 and IR extension, giving you the ability to control your displays or devices remotely.

Applications

  • Security
  • PC Networking
  • Conference Center Systems
  • Point of Sale
  • Camera Surveillance
  • Video Phone
  • Control Room Systems
  • Recording Studio
  • PC KVM Extension

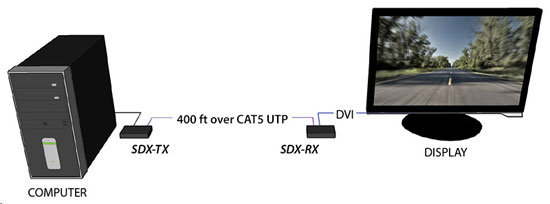

diagram

Features

  • Extends DVI-D up to 400 feet (120m) from the source
  • Data recovery for digital video
  • Supports up to 1920x1200 digital video resolution
  • Automatic DDC Learning
  • Uncompressed Video HDBaseT
  • RS-232 extension allows for remote control of displays
  • External power adapter for transmitter and receiver unit
  • Plug and play

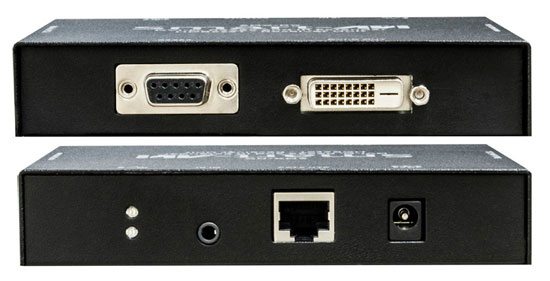

diagram

SmartAVI SDX-RXSTransmitter Specifications

Mechanical
Height 1 in. (2.54 cm)
Width 5.1 in. (12.95 cm.)
Depth 3.62 in. (9.19 cm.)
Video FormatDVI-D
Maximum Pixel Clock165 MHz
Video Input Interface(1) DVI-D 29-pin female
Video Output Interface(1) DVI-D 29-pin female
ResolutionUp to 1920x1200 @ 60Hz and up to 4K/2K (3840x2160) @ 30Hz
DDC 5 volts p-p (TTL)
RS232 Input InterfaceDB9 (female)
RS232 Output Interface DB9 (female)
Speed@115 Kbps
IR Input Interface(1) 3.5 mm (female)
IR Output Interface(1) 3.5 mm (female)
Frequency Response30KHz to 80KHz
PowerExternal 100-240 VAC/5VDC3A @20W
UPC / EAN Barcode icon
UPC 813280019323
EAN 0813280019323
Question: Do you also have to purchase the SDX-Rx device seperately or is it included with the Tx deivce?
Answer: Thank you for your inquiry,

The SmartAVI SDX-TXS only includes the transmitter. You can buy the receiver seperately or purchase both units together with the SmartAVI SDX-S.
