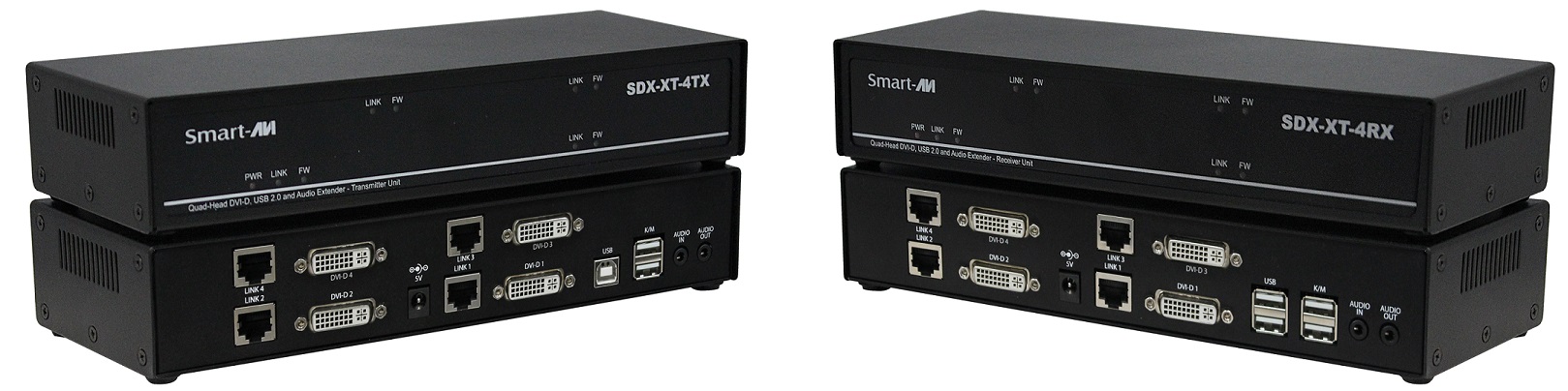

The SDX-XT-4P is a Quad Head DVI-D (1920x1200), USB 2.0, USB keyboard-mouse and stereo audio extender, sending signals up to 500ft (152m) away over four conventional and inexpensive CAT5/5e/6 cables. This new technology is superior to older DVI extenders that require a special CAT6 shielded cable to go a short distance.

The SDX-XT-4P is the first extender on the market to feature 1920 x 1200, USB 2.0 and full KVM extension on one cohesive system and is optimized for Full HD monitors with crystal-clear picture; excellent for detail driven work.

The SDX-XT-4P extends keyboard-mouse signals for remote workflow management and offers uninterrupted emulation from the user's transmitter unit. This uninterrupted emulation prevents accidental disconnection or deactivation issues during mission critical operations. The SDX-XT-4P's unparalleled KVM extension technology makes it the perfect solution for extending servers in applications ranging from data processing to interactive conferencing

SDX-XT-4P Features

  • Extends quad DVI-D up to 500 feet from the source
  • HDCP Support
  • Supports up to 1920 x 1200 digital video resolution @ 60 Hz
  • Automatic DDC Learning
  • USB Keyboard and Mouse extension
  • Uncompressed Video
  • External power adapter for transmitter and receiver unit
  • Supports Stereo Sound
  • Compatible with Windows, Mac and Linux Operating Systems
  • Transparent USB 2.0 extension

SDX-XT-4P Applications

SECURITY - When managing content in high-security environments, creating a safe and secure control room is critical. In the vast majority of such applications, that requires routing signals from a server room, where the computers are safely stored, to a control room, where approved personnel access the data and video feeds. Whether that's in a security surveillance center, an operations control room or some other security-related environment, being able to extend video, audio and USB is a must.

The SDX-XT-4P provides system architects with the flexibility they need to create secure environments for servers as well as the end users accessing those computers. And with quad DVI-D signal extension, users can manage their connected computers with expanded display options, enabling them to stay in control of their content at all times.

DIGITAL SIGNAGE - Managing a multi-screen digital signage solution requires some important foresight regarding the signal path to those informative and attractive displays. Particularly when it comes to properly scheduled, updated and managed content being displayed, it's much more efficient to keep all of the digital signage hardware in one central location and to extend the video signals out from there. That means signal extension is an important part of a smart digital signage solution, and the SDX-XT-4P gives users the flexibility they want and need to place their digital signage screens in the right locations to maximize their effectiveness.

AUDIO AND VISUAL RECORDING - For users in the recording arts, maintaining the utmost in signal and recording fidelity is an absolute necessity. For video recording, it is often important that no unsightly computers are visible. Similarly, audio engineers must keep noisy computers away from the rooms where recording happens to ensure the final product sounds professional. In both such instances, the SDX-XT-4P gives users the ideal way to keep their servers or computers away from areas that audio or video recording is being done, ensuring a better final product

SDX-XT-4P-S Specifications:

FormatDVI-D (HDMI-ready with adapter)
ResolutionResolution: high definition 1920 x 1200
Color Depth: 24-bit color depth
Latency: less than 1 ms
Input Interface (TX)(4) DVI-D 29-pin female
Output Interface (RX)(4) DVI-D 29-pin female
MAX Output DistanceUp to 1920 x 1200 @ 60 Hz
Input Interface3.5 mm Jack Socket (female)
Output Interface3.5 mm Jack Socket (female)
Input Interface (TX) (1) USB Type B
Output Interface (RX)(2) USB 1.1 Type A for KM Devices;
(2) USB 2.0 Type A Transparent
Keyboard and mouseKeyboard and mouse emulation
Power100-240 VAC/5VDC3A@20W
Dimensions17 in W x 1.7 in H x 3.2 in D
Weight (TX / RX) 1.75 / 1.95 lb
Operating Temp.0-40 °C (32-104°F)
Storage Temp.-20-60°C (-4-140 °F)
Humidity20% to 80% (non condensing)
ApprovalsUL, CE, ROHS Compliant
