NTI VIDMUX 4 Port DVI/HDMI Video Switch with Audio



For upgrade or replacement options: Contact Us

The NTI VIDMUX SE-DVI-4A is a 4 Port DVI/HDMI video switch that enables one DVI/HDMI display and speakers to be switched between up to four single link digital DVI/HDMI video sources.

NTI SE-DVI-4A Features:

  • Supports DVI interface for crisp and clear video quality on flat panel display.
  • Supports HDTV resolutions up to 1080p and computer resolutions to 1920x1200.
  • Eliminates redundant video displays.
  • Compliant with HDMI 1.3 and HDCP standards.
  • Supports the DDC2B protocol.
  • 3.5mm stereo audio input for each channel (Male to Male, 3.5mm jack, audio cable NOT included. PN: SA-xx-MM where xx is some length).
  • Passes HDMI audio signal through DVI-I port.
  • Transmit audio and video over a single cable with the DVI-HDMI-xx-MM male DVI-D to male HDMI cable.
  • Control via top panel push button or infared remote (IR) control.
  • IR remote control includes power on/off, mute function, and break-away audio (switch audio independent of video).

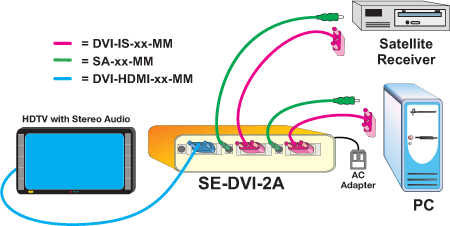

NTI DVI/HDMI video switch application diagram
Application diagram showing the 2-port SE-DVI-2A DVI/HDMI video switch

NTI SE-DVI-4A Specifications:

Height 1.1 in. (27.9 mm.)
Width 2.3 in. (58.4 mm.)
Depth6.4 in. (162.6 mm.)
Power100 to 240 VAC at 50 or 60 Hz via AC Adapter
Audio/Video InputFemale DVI-I connectors.
3.5mm stereo audio jacks.
Compatible with computers and HDTV video sources (satellite receivers, DVD players, etc) with single link digital DVI outputs.
Audio/Video OutputOne Female DVI-I connector.
One 3.5mm stereo audio jack.
Single link DVI-D signal.
Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
IncludedFive 6" Male to Female Stereo Audio low profile extension cables included.
To connect an DVI-D source or display with speakersDVI-IS-xx-MM DVI-I cable and SA-xx-MM Male to Male Stereo Audio cable
(Not Included)
To connect the video source or display with integrated speakersDVI-HDMI-xx-MM DVI-D to
HDMI interface cable
(Not Included)
Regulatory ApprovalsCE, FCC
WarrantyTwo years
