NTI XTENDEX 2 Port Serial IP Extender

Serial-IP-2

$220.00

Discontinued
For upgrade or replacement options: Contact Us

The NTI XTENDEX™ Serial-IP-2 Serial IP extender transparently connects, configures, and communicates with serial devices over Ethernet using a single IP address.  This 2 port serial extender uses DB9 male serial connectors and supports RS-232, RS-422 and RS-485.

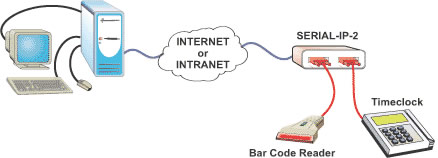

NTI 2 Port Serial IP Extender Diagram
NTI 2 Port Serial IP Extender Diagram

NTI Serial-IP-2 Features & Benefits:

  • Network enable any RS-232/422/485 serial device for remote access and control.
  • Virtual COM drivers for Windows 98/ME/2000/NT/XP.
  • Multiple TCP client connections.
  • Supports Web and Telnet consoles.
  • Off-site troubleshooting.
  • Software Configurable - Control functionality remotely.
  • Monitor Port - Use any PC on the LAN/WAN to actively view and troubleshoot the communications status.
    • Shows when there is a client connection to the server.
    • Shows client IP address.
    • Serial transmit and receive byte counter.
    • Displays RTS/DTR - DCD/DSR/CTS status.
  • Connect the SERIAL-IP-2 to a NTI Serial Console Switch to remotely control up to 32 RS232 devices.

The XTENDEX serial IP extender is also available in 1 port (Serial-IP) and 4 port (Serial-IP-4) models.

NTI Serial-IP-2 Specifications:

Mechanical
Height 0.9 in. (2.2 cm.)
Width 3.4 in. (8.6 cm.)
Depth4.5 in. (11.4 cm.)
Environmental
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity0 to 90% non-condensing
Power110 VAC at 60 Hz via AC adapter
Serial Port Connectormale DB9
LAN10.100 Mbps Auto-detecting-10 BaseT, 100 BaseTX
Data Rate110 bps to 230.4 kbps.
ProtocolsTCP, IP, ARP, DHCP, Telnet, HTTP, UDP, ICMP
OS SupportedWindows 98/ME/2000/NT/XP
ManagementConsole port, Telnet
Client SoftwareVirtual COM port driver, manager software
Communication ModeVirtual COM port mode, direct IP mode, paired mode
Regulatory ApprovalsFCC, CE
