NTI Console Serial Port Switch w/ Manageability up to 16 Devices

SERIMUX-CS-16

$785.00$721.84
Save $63.16
FREE Shipping on orders over $100

The NTI SERIMUX-CS-16 is a 16-port console serial port switch, which gives IT managers the ability to cost effectively manage serial devices, including servers, switches, routers, and telecom gear. The switch can be controlled via an ASCII terminal with menu-driven integrated software, the front panel keypad, or optional Ethernet interface.


SERIMUX-CS-16 Features

  • Eliminates the need to connect each device to an ASCII terminal or PC.
  • Connect up to 16 devices with different baud rates, parity, and character length. Each switch also has one RJ45 connector for a local terminal.
  • Provides out-of-band access to network devices (servers, routers, network switches, and any other network devices allowing console operation using RS232).
  • Power cycle without halting SUN host computer.
        -No inadvertent "break" signals are generated to cause unintentional rebooting of SUN computers.
  • Dual power option creates a redundant power system protecting the console switch from any power failure issues.
  • High quality, rugged steel construction with durable powder coat finish. Connects to console serial ports using standard CAT5/5e/6 cables and cable adapters.
        -Maximum cable length is 100 feet.
  • Two operator levels (administrator and user).
  • Switching is simplified with programmable device names and menu-driven device selection.
        -All configuration parameters are stored in non-volatile EEPROM.
  • Built-in data buffers save the most recent RS232 console output from each connected device, which simplifies troubleshooting failures.
  • Local commands can be directed via VT52, VT100, ANSI serial console, a PC with a terminal emulation program, or any compliant terminal.
  • Gain access to servers without interrupting service to end-users; maintain optimal up-time.
  • Manage server farms or data centers via serial ports and standard external modems or through optional Ethernet interface using Telnet or Web interface.
  • 1RU rackmount case is standard.

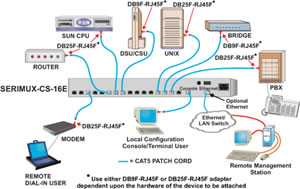

SERIMUX-CS-16 Diagram

SERIMUX-CS-16 Diagram
(SERIMUX-CS-16E model shown)

SERIMUX-CS-16 Specifications

Mechanical
Height 1.75 in. (4.44 cm.)
Width 15.3 in. (38.8 cm.)
Depth 6 in. (15.24 cm.)
Environmental
Operating and Storage Relative Humidity 17 - 90% non-condensing RH
Operating Temperature 32-100°F (0-38°C)
Storage Temperature -20-140°F (-30-60°C)
Power
Input Voltage AC 100 - 240V, 50 - 60Hz
Power Consumption 10 W
Optional  Optional dual power available
MBTF 53,238 hrs
Compatibility Supports most devices with an RS232 serial port.
Serial Interface
Serial Port Connectors 16 RJ45 EIA-232
Console Port Connector One RJ45 EIA-232
Flow Control Hardware (RTS/CTS), Software (XON, XOFF), both or none.
Signals TXD, RXD, DSR, DTR, CTS, RTS, DCD
Data Transfer Rate Up to 115.2K baud between two ports
-Two ports can be at different baud rates
Adapters Four cable adapters are included
  DB-25F to RJ45 console adapter
  DB-9F to RJ45 console adapter
  DB-25M to RJ45 console adapter
  DB-25M to RJ45 modem adapter
  Additional adapters available
Network Interface (Optional)
  10/100 BaseT Ethernet port with RJ45 connector
  Supports static and dynamic IP addresses
Protocols For Optional Ethernet Control
  HTTP, HTTPS, ICMP, DHCP
  TCP/IP, SSL, Telnet
Warranty Two years
Standards
Approved Agency CE, RoHS
Question: I am looking to control 10 audio/video presentation switchers (Kramer VP-443), with one connected PC to the A/V switchers RS-232 ports, will this device work in this application?
Answer: Thank you for your inquiry. Please give us a call at 1-877-586-6654 to discuss your project in greater detail.
